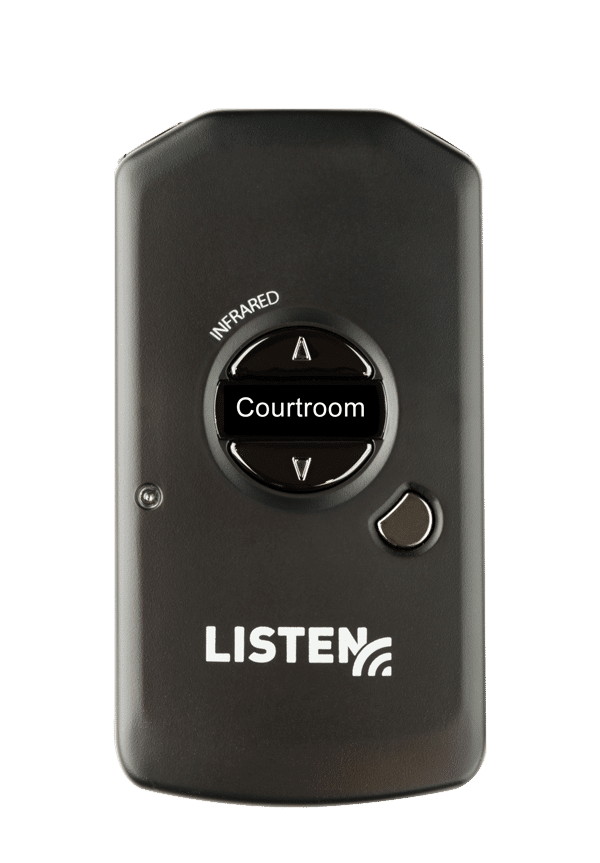

Advanced Intelligent DSP IR Receiver

Item:LR-5200-IRb Price: Original price was: $298.00.Current price is: $238.40.B-STOCK

Listen Technologies’ LR-5200-IR receiver—one of the receivers in the next-gen Intelligent Digital Signal Processing (iDSP) line—gives assistive listening users an option for high-performance audio in a compact device that offers best-in-class pickup and range. The LR-5200-IR also provides houses of worship, theaters, lecture halls, and other venues with an affordable and easy-to-manage solution when adding or expanding their assistive listening options.

The built-in rechargeable battery technology makes the LR-5200-IR an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering a strong, reliable receiver. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-IR easy to wear and simple to use for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From businesses to banquet halls, theaters, and more, the LR-5200-IR makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LR-5200-IR Advanced Intelligent DSP IR Receiver*



*The LR-5200-IR comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • High-performance, ultra-sensitive infrared personal listening receiver offering the best reception, sensitivity, and range in its class
  • Compact design—the smallest of its kind—makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more
  • Backed by Listen Technologies’ limited lifetime warranty and hassle-free support

Also Needed

Specs

+Audio

System Distortion< 2% total harmonic distortion (THD) at 80% deviation
Audio Output JacksTwo (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard
System Frequency Response63 Hz - 15 kHz (±3 dB)
System Signal to Noise Ratio> 60 dB

+Controls

User ControlsPower on/off, volume up/down, Listen button for end user channel selection
ProgrammingVia software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock
Set-up ControlsPress and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

+Indicators

DisplayOLED - Channel designation, battery level, unit number, charging status, volume status
LEDFlashes when batteries are low or to indicate charging, solid when fully charged

+RF

Carrier Frequencies2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
Number of ChannelsFour (4) selectable channels
Frequency Accuracy± .005% stability 32 to 122 ºF (0 to 50 ºC)
ModulationFM Wideband, ±50 kHz deviation max, 50 uS de-emphasis

+IR

Coverage Area30,000 ft² (2787 m²) single channel with LT-84/LA-141 or 40,000 ft² (3716 m²) single channel with LT-82/LA-140
SquelchProgrammable in 20 steps, automatic on loss of IR signal
Power Save ModeTurns unit off after a specified time of no IR signal, default is 30 minutes
SensitivityBetter than one (1) nW/cm2 @40 dB SNR

+Power

Power SupplyMicro USB connector, 5 V, 500 mA
Battery TypeLithium Ion
Battery Life8 Hours of typical use
Battery Charging TimeFully charged in 2.5 Hours

+Physical

ColorFlat Black
Unit Weight with Batteries2.8 oz. (79.4 g)
Shipping Weight3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum
Dimensions (H x W x D)3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
Unit Weight1.9 oz. (53.9 g)
Dimensions with Belt Clip3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

+Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage(-)4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC Part 15, ICS-03, CE, RoHS, WEEE

FAQs

+What is the difference between the LR-4200 and the LR-5200?

The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+How many LR-5200 receivers can I use in a system?

As many as you need, the number is endless.

+How long does it take to fully charge the LR-5200?

It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.

+What type of battery technology does the LR-5200 use?

The LR-5200 uses a non-proprietary Lithium Ion battery.

+How long will the LR-5200 run on a fully charged battery?

The LR-5200 will run continuously for 8 hours on a fully charged battery.
