Antenna Kit for Rack Mount (150 MHz)

Antenna Kit for Rack Mount (150 MHz)

Item:LA-135

The LA-135 Antenna Kit is designed to adapt our LA-326 Rack Mount Kit to accept antenna mounting, and includes a 90-degree helical antenna. The combination can be used to build your own antenna for specific application and installation needs. Compatible with our LT-800 transmitter and LR-100 receiver, the antenna provides excellent coverage for small and medium venue.

*Note: Available for use in Australia

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

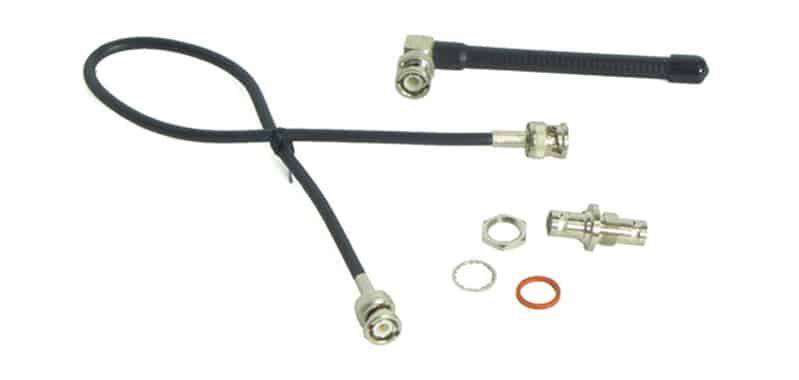

Includes

One (1) LA-133 90° Helical Antenna (150 MHz)
One (1) 18 in. BNC to BNC Cable
One (1) BNC feed-through Connector

Highlights

  • Converts the LA-326 rack mount kit to allow a 90-degree antenna to be mounted
  • Includes our 90-degree helical antenna for the 150 MHz band
  • Allows you to build a custom antenna for your specific application
  • Provides a transmission range of up to 183m (600 ft.)

Specs

+Interconnections

ConnectorsBNC

+RF

Frequency Range150.800 - 152.350 MHz
Number of Channels32 (6 wide band, 26 narrow band)

+Physical

Length3.75 in. (9.5 cm)
ColorDark Grey
Shipping Weight1 lb. (454 g)
Diameter0.44 in. (1.10 cm)
Cable Length18 in. (46 cm)
Weight4.2 oz. (119 g)
