Highlights
- Converts the LA-326 rack mount kit to allow a 90-degree antenna to be mounted
- Includes our 90-degree helical antenna
- Allows you to build a custom antenna for your specific application
- Provides a transmission range of up to 122 m (400 ft.)
Antenna Kit for Rack Mount (72 MHz)
Item:LA-125 Price:$78.00MSRP
Designed to adapt our LA-326 Rack Mount Kit to accept antenna mounting, the LA-125 includes a 90-degree helical antenna and can be used to build your own antenna for specific application and installation needs. Compatible with our LT-800 transmitter and LR-100 receiver, the antenna provides excellent coverage for small and medium venue.

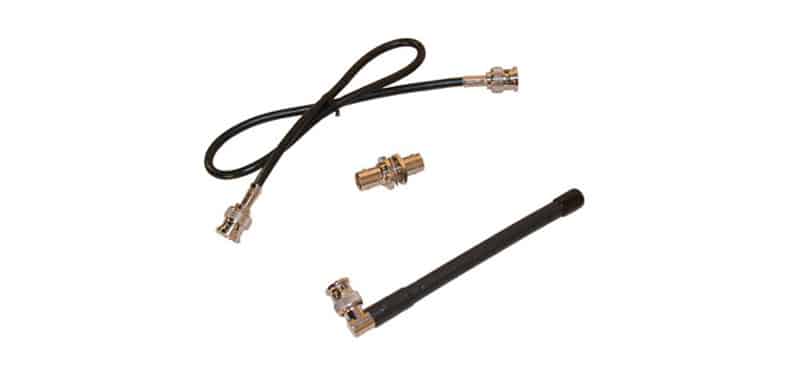

Includes
One (1) LA-123 90° Helical Antenna (72MHz)
One (1) 18 in. BNC to BNC Cable
One (1) BNC feed-through Connector
One (1) Manual
Also Needed
Specs
+Interconnections
| Connector/s | BNC |
+RF
| Frequency Range | 72.0250 - 75.9500 MHz |
| Number of Channels | 57 (17 wide, 40 narrow) |
| Typical Range | Range up to 122 m / 400 ft. |
+Physical
| Length | 8.75 in. (22.22 cm) |
| Color | Dark Grey |
| Shipping Weight | 1 lb. (0.5 kg) |
| Diameter | 0.44 in. (1.10 cm) |
| Cable Length | 18 in. (46 cm) |
| Weight | 4.2 oz. (119 g) |
