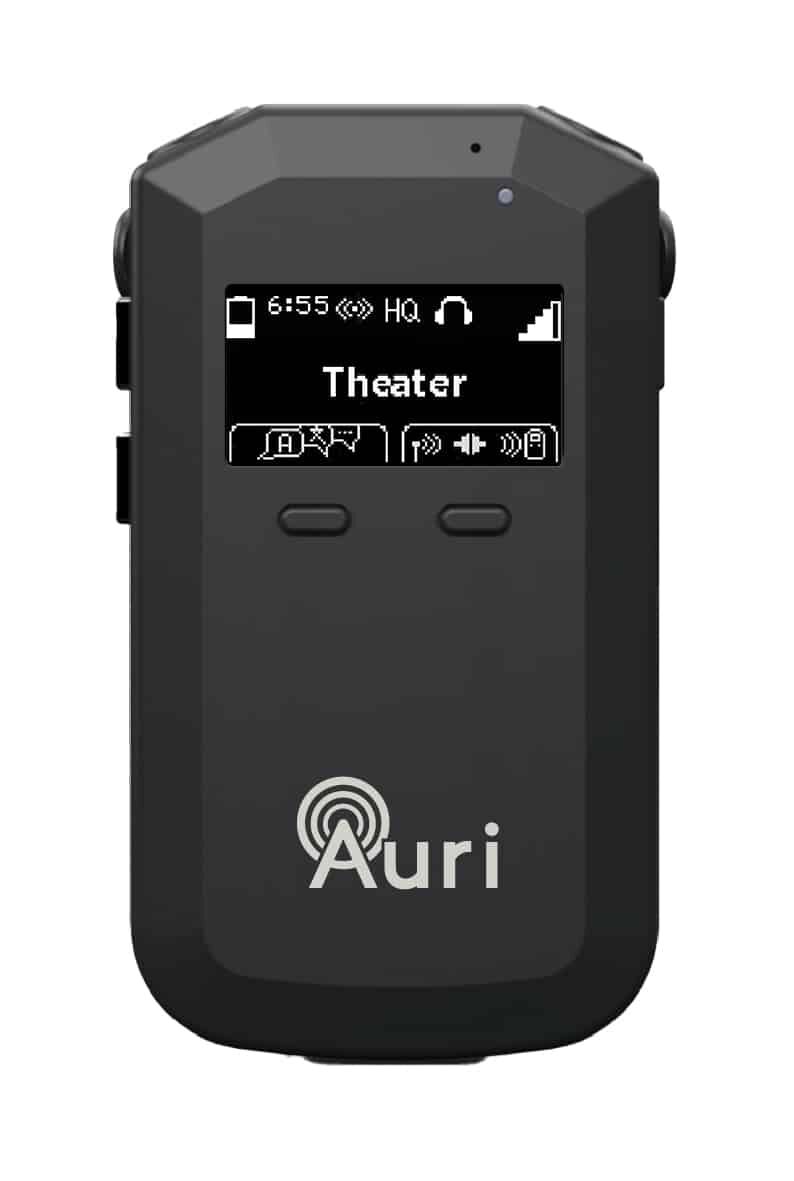

Auri RX-1 Receiver
Item:AURI-RX1
The Auri Audio Receiver is a state of the art assistive listening receiver, allowing venues to provide hearing assistance to guests while meeting compliance with disability and accessibility requirements. Real-time audio is broadcast from a Auri Transmitter over Bluetooth Low Energy (BLE) directly to AURI-RX1 receivers. Venues can simply lend receivers to guests who want to hear the audio loud and clear. Guests experience high quality low latency audio at your venue with the Auri Audio Receiver.
The Auri Receiver provide high-performance audio in a compact device that offers best-in-class pickup and reduced noise. The Auri Receiver also provides houses of worship, theaters, lecture halls, and other venues with an easy-to-use easy-to-manage solution when adding or expanding their assistive listening options.
The built-in rechargeable battery technology makes the RX1 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a built in docking station port which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, setup, and programming using the free Auri Manager Software.
The integrated neck loop and lanyard with loop driver makes the RX1 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.
From classrooms to conferences, businesses to banquet halls, and more, the AURI-RX1 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.
Includes
One (1) AURI-RX1 Auri Receiver
One (1) LA-365 Rechargeable Lithium Polymer Battery
Also Needed
Specs
+Physical
| Dimensions (H x W x D) with Belt Clip | 9 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.) |
| Unit Dimensions (H x W x D) | 9 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.) |
| Unit Weight | 80 g (2.82 oz.) |
| Shipping Weight | 105 g (3.7 oz.) |
| Enclosure material | PC plastic (IR transparent) |
| Display | 31 x 16 mm (1.22 x .63 in) , 64 x 128 pixel OLED display |
| LED | Multi-colored, multi-function |
| Light Sensor | Visible light, automatically adjusts display brightness |
| Color | Black, Chrome Volume Buttons |
| User Controls | Volume up/down, channel up/down, language selection, power, status |
| Headphone Connection | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| USB Connection | USB-Micro for power/charging, power delivery compliant |
| Dock Connection | 4 contacts w/ magnetic latch for charging and programming via docking station |
| Belt Clip | Removable |
| Battery Door | Removable for battery replacement |
+Audio
| Audio Output Method | 3.5mm connection for wired headphones or inductive neck loops |
| Frequency Response (system) | 16 kHz sample rate: 50 Hz – 7.5 kHz |
| 24 kHz sample rate: 50 Hz – 11.0 kHz | |
| 48 kHz sample rate: 50 Hz – 19.5 kHz | |
| Distortion (system) | < 1% Total Harmonic Distortion (at nominal level) |
| Signal to Noise Ratio (system) | > 74 dB (at nominal level) |
| Dynamic Range (system) | 80 dB (at maximum level) |
| Latency (system) | 31 mS Typical |
+Radio
| Operating Frequency | 2400 to 2484 MHz |
| Type | Auracast™ Compliant, Receive Only |
| Typical Range | Indoor 200 m, Outdoor 400 m, depending upon transmitter and conditions |
| Security | Encryption - AES 256 bit |
| Sensitivity | - 94 dBm |
+Communications
| Bluetooth | 5.3 |
+Controls
| User Controls | Power on/off, display on/off, channel selection, volume up/down |
| Setup/Programming | Via Auri Manager Software/Docking Station |
+Indicators
| Display | Channel playing, available channels, battery level with time remaining, signal strength, volume status, charging status, language selection |
| LED | White slow flashing - receiver is charging |
| White solid - receiver is fully charged | |
| Red fast flashing - low battery |
+Power and Charging
| Power Supply | USB-Micro or Docking Station - 5V, 500mA |
| Battery Type | Lithium – ion, rechargeable, field replaceable |
| Battery Size | Lithium Polymer 3.7 Vdc, 730 mAh |
| Battery Life | > 20 hours |
| Battery Charge Time | Fully charged in < 4 hours (dead battery) |
| Power Save Modes | Auto Off - powers down on loss of audio (adjustable 0 - 30 minutes) |
| Auto Power - powers down on charging | |
| Jack Sense - powers down when headset is disconnected (1 min) |
+Environmental
| Temperature | Operation- -10 °C (14 °F) to 40 °C (+104 °F) |
| Storage- -20 °C (-4 °F) to 50 °C (+122 °F) | |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
+Compliance
| Standards |
| * Specifications subject to change without notice. |
