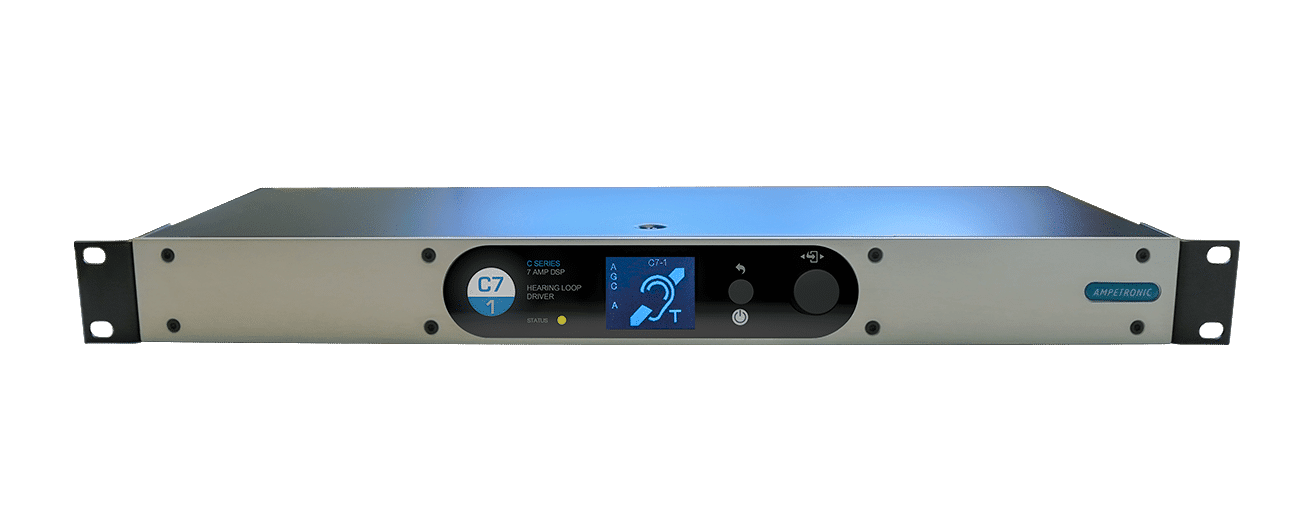

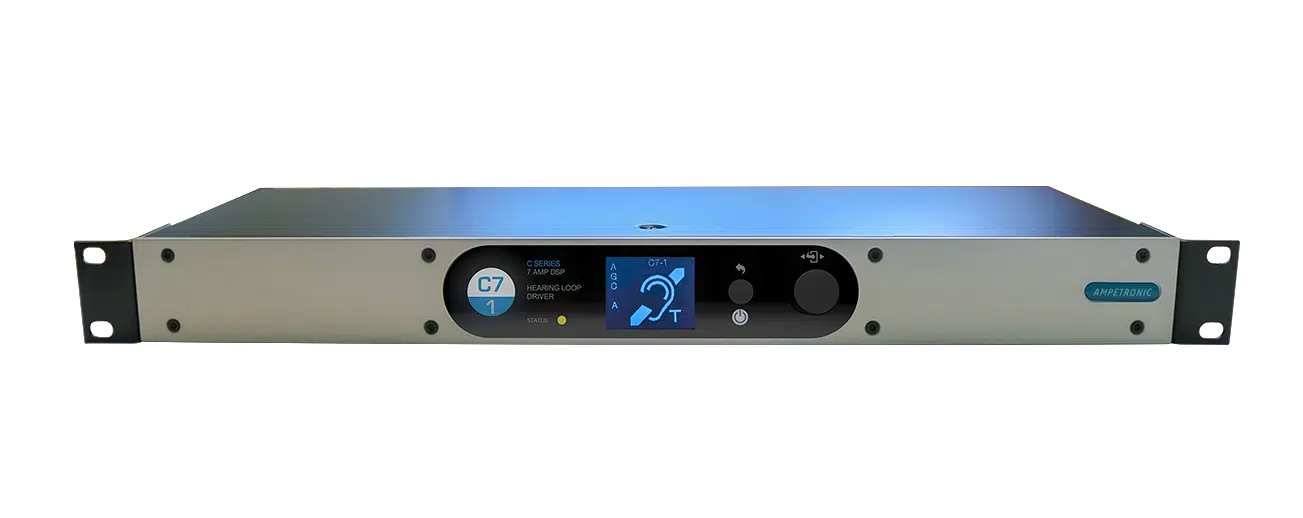

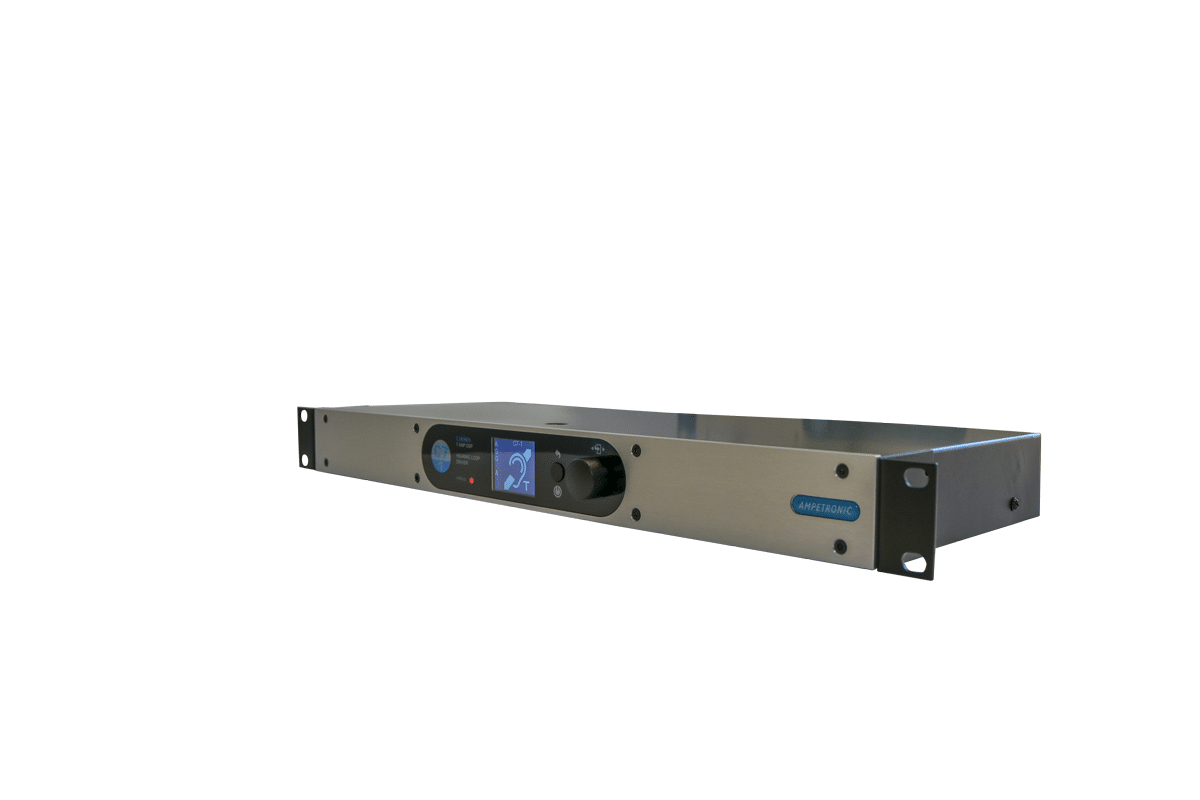

A picture of a C-Series Perimeter Loop Driver 7A.

C-Series Perimeter Loop Driver 7A

Name: C-Series Perimeter Loop Driver 7A
SKU: C7-1
Availability: InStock

Item:C7-1

The C7-1 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface and built-in test tones.

Available in Non-Networked (C7-1), Networked (C7-1N), and Dante (C7-1D) versions.

Engineered to offer the high end performance, consistency and certainty of results associated with top of the range hearing loop drivers, all for the price of a mid-range amplifier. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.

Network and Dante versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.

The C7-1 features 7 Amps RMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations.

Download Product Data Sheet

See Architectural & Engineering Specs

Configurations

C7-1 C-Series Perimeter Loop Drive 7A

C7-1N C-Series Perimeter Loop Drive 7A Networked

C7-1D C-Series Perimeter Loop Drive 7A Dante

Architectural Specs

The C-Series Perimeter Loop Driver shall deliver 7 A (RMS) for at least 60s continuously when excited with a 1 kHz sine wave as measured with the IEC 62489-1 induction loop amplifier performance standard. Only drivers that have been tested and compliant to this IEC 62489-1 specification shall be accepted, no other substitutions will be allowed. The driver shall be a class D amplifier design with automatic sleep mode and provide up to 20 V_(RMS)at the maximum output current.

In a Perimeter Loop application with no metal present it shall cover up to 460 sq. m (4,952 sq. ft.) in a square area. The driver shall have a frequency response of at least 80Hz to 6.5kHz +/- 3 dB with THD+N less than 0.2%. The unit shall incorporate (AGC) Audio Gain Control optimized for speech with a compression dynamic range of >36 dB audio processing. The unit shall incorporate built in test signals and up to 4dB/oct Metal Loss Correction to rectify frequency loss caused by adjacent metal structures. The unit shall occupy one rack space and rack mount brackets shall be included. The Perimeter Loop driver is tested to and compliant with: IEC 62489-1 induction loop amplifier performance standard.

The C7-1 C-Series Perimeter Loop Driver 7A is specified.

In a Perimeter Loop application with no metal present it shall cover up to 460 sq. m (4,952 sq. ft.) in a square area. The driver shall have a frequency response of at least 80Hz to 6.5kHz +/- 3 dB with THD+N less than 0.2%. The unit shall incorporate (AGC) Audio Gain Control optimized for speech with a compression dynamic range of >36 dB audio processing. The unit shall incorporate Dual Slope Metal Loss Correction to rectify frequency loss caused by adjacent metal structures. The unit shall incorporate built in test signals and shall be fully networkable with a standard browser based control panel for remote set-up, monitoring and email alerts. The unit shall occupy one rack space and rack mount brackets shall be included. The Perimeter Loop driver is tested to and compliant with: IEC 62489-1 induction loop amplifier performance standard.

The C7-1N C-Series Perimeter Loop Driver 7A Networked is specified.

The C-Series Perimeter Loop Driver shall continuously deliver 7 A (RMS) for at least 60s continuously when excited with a 1 kHz sine wave as measured with the IEC 62489-1 induction loop amplifier performance standard. Only drivers that have been tested and compliant to this IEC 62489-1 specification shall be accepted, no other substitutions will be allowed. The driver shall be a class D amplifier design with automatic sleep mode and provide up to 20 V_(RMS)at the maximum output current.

In a Perimeter Loop application with no metal present it shall cover up to 460 sq. m (4,952 sq. ft.) in a square area. The driver shall have a frequency response of at least 80Hz to 6.5kHz +/- 3 dB with THD+N less than 0.2%. The unit shall incorporate (AGC) Audio Gain Control optimized for speech with a compression dynamic range of >36 dB audio processing. The unit shall incorporate Dual Slope Metal Loss Correction to rectify frequency loss caused by adjacent metal structures. The unit shall incorporate built in test signals and shall be fully networkable with a standard browser based control panel for remote set-up, monitoring and email alerts. The unit shall incorporate a RJ45 ethernet input supporting 2 channels of Dante or AES67 at 44.1kHz or 48 kHz sample rates. The unit shall occupy one rack space and rack mount brackets shall be included. The Perimeter Loop driver is tested to and compliant with: IEC 62489-1 induction loop amplifier performance standard.

The C7-1D C-Series Perimeter Loop Driver 7A Dante is specified.

Standard Compliance

This product is designed to form part of a system that can meet all the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079. To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required. All specification data has been compiled in accordance with IEC62489-1, the international standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this Standard.

This product is available through authorized resellers.

Includes

One (1) C7-1(x) C Series Perimeter Loop Driver 7A
One (1) Loop Connector
One (1) DC Connector
Two (2) Input Connectors
One (1) 100VAC Line Connector
One (1) Line Out Connector
Two (2) 2mm Steel 1U Rack Mount Brackets
One (1) C Series Quick Start Guide
One (1) Power Cable (region specific)
One (1) Induction Loop Sign
Four (4) Self-adhesive Feet

Highlights

Simple digital interface for accurate adjustment
Network and stand-alone options
Built-in test tones
Compatible with Loopworks Measure LoopLink for direct and automated driver control
Clear indicators and system diagnostics
Compact 1U rack mount unit with internal power supply
Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
Industry standard Phoenix connectors
Data compliant with IEC 62489-1 Standard
100V line input

Also Needed

Specs

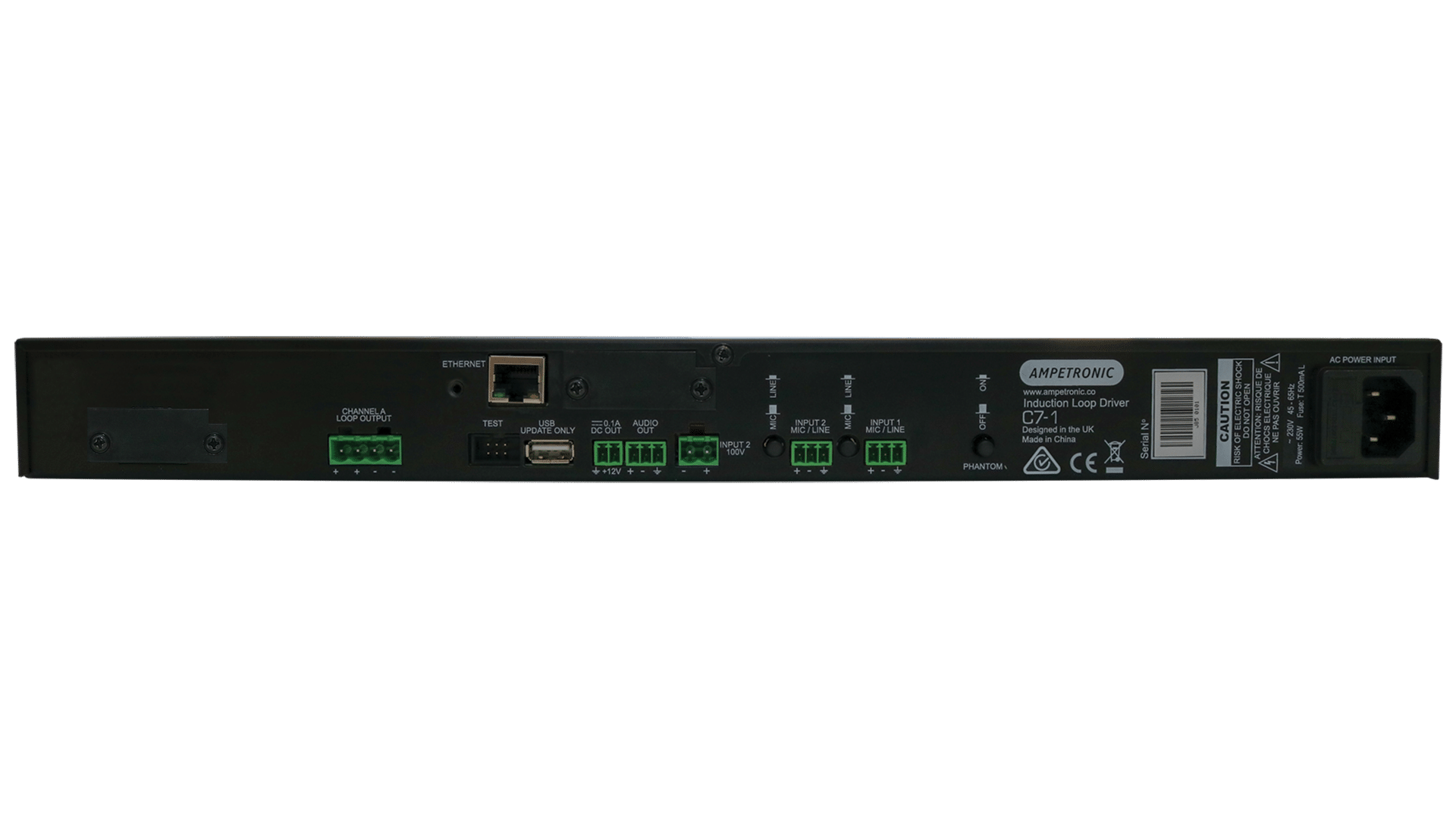

+Inputs

Power	120/230 VAC, 45-65 Hz, 55W
Input 1 & 2	3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch, Switchable 250Hz low cut filter, Priority input option (network models only)
Microphone / Line	Microphone specification; 200 – 600Ω, sensitivity -67dBu, Selectable 24V phantom power on microphone only, Line sensitivity -42dBu, Max line level 17dBu, Max mic level -8dBu
100V Line	2 way 5mm euroblock screw terminal (supplied), 100V sensitivity +7dBu
Dante (optional) - Input 3	RJ45 Ethernet input (100MB/s), AES67 compliant, 2x channels mono summed
Network (optional C5/C7)	RJ45 Ethernet, control and monitoring, Hosted web server, Telnet and SNMP

+Outputs

Loop Output Drive Voltage	20VRMS (28Vpk) at maximum output current per channel
Loop Output/Drive Current	7ARMS (10Apk) up to 60 seconds continuous 1kHz sine wave, peak >10A per channel Cont. pink noise 3.3ARMS short term peaks >10A per ch.
Loop Connectors	4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
DC Output	2 way 3.5mm euroblock screw terminal Re-settable, fuse protected 12V 0.1A. Controllable to reflect amplifier status (network models only)
Line Output	3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output

+Audio System

Frequency Response	80Hz to 6.5kHz
Distortion	THD+N <0.3% 1kHz sine at full current
Automatic Gain Control	The AGC is optimized for speech. Dynamic range >36dB
Metal Loss Correction	Corrects system frequency response issues due to metal structures in a building. Gain constant at 1kHz, adjustable gain slope from 0 to 4dB per octave in 0.25dB increments. Custom 2 slope MLC allows different slopes and transition frequency to be set via the menu (network models only). This does not compensate for signal loss from metal structures which can be significant.
Phase Shift	User selectable (network models only) at 0° or 90° between outputs

+Additional Functions

Status

Tri-colour LED: Solid GREEN = normal operation, Flashing GREEN = sleep or standby mode, Flashing RED = error, Flashing AMBER = firmware updating

+Physical

Size	Full width 1U 19″ rack mount. Width 430mm Depth 190mm Height 44mm, Depth inc. knob 190mm (C5/C7) 305mm (C10/C14)
Mounting Options	Freestanding 1U 19″ rack mount (brackets fitted as standard), Wall mounted brackets available separately
Weight	2.8 kg
Environment	IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
Cooling	C5,C7 Passive, C10/C14 variable speed fan, front inlet, rear exhaust

+Compliance

Marks and Approvals

FCC, UKCA, CE, MET

* Specifications subject to change without notice.
