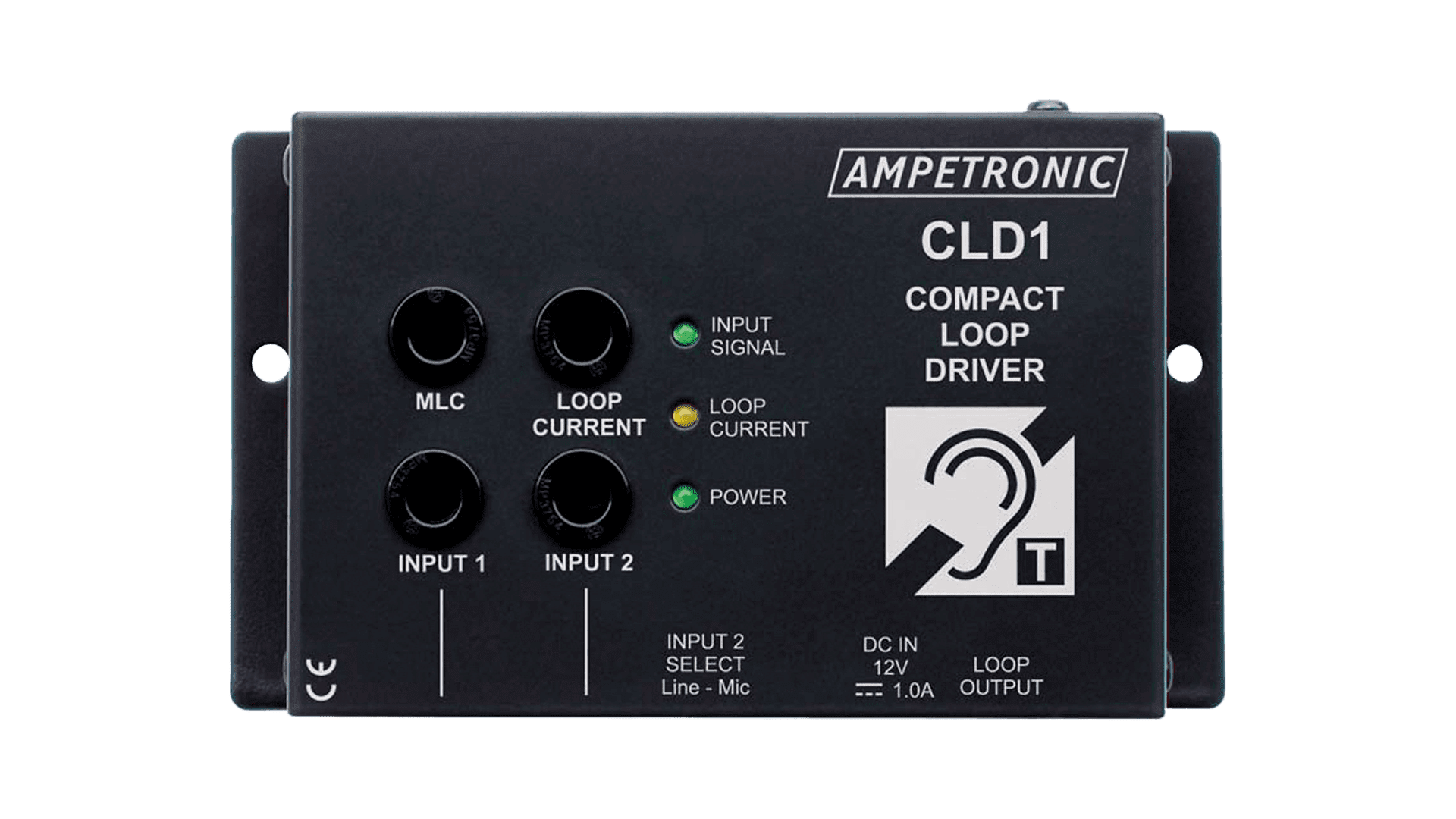

The CLD1 Compact Loop Driver is designed for counter systems and small area perimeter loop systems. Measuring only 5 x 2.9 x 1.4 in. (128 x 74 x 35 mm) and with an output current of 2.4 A (RMS), the CLD1 is the smallest and highest performance amplifier in its class. Based on proven and highly reliable technology it is backed by a 5 year warranty and Listen technical support. The CLD1 offers certainty of performance and the lowest lifetime cost available.
Audio quality is ensured with metal loss correction (MLC) combined with usual high standards of design. The CLD1 is designed for flexibility and convenience, featuring two (2) separate microphone inputs with independent level controls, one of which can be configured as a line input. All cable connections are made on a single face of the unit, adding flexibility and further simplifying installation.
One (1) CLD1 Compact Loop Driver
One (1) GE00001 Multi-Turn Preformed Loop for CDL1
One (1) Handbook and Installation Instructions
One (1) 12 VDC Power Supply (North America)
| Frequency Response | 80 Hz to 6.5 kHz ± 3 dB |
| Maximum Output Level | Correct system frequency response due to metal structures |
| Distortion | THD+N < 0.2 %, 1 kHz Sine Wave at Full Current |
| AGC | Optimized for Speech, Dynamic Range > 36 dB |
| Microphone Input | Unbalaced 3.5mm Mono Connector for Electret Micorphone, 6 VDC Bias |
| Line Input | Switchable Line/Microphone, Unbalaced 3.5mm Mono Connector |
| Gain Control | Front recessed input level control |
| Cooling | Natural Convection |
| Drive Current Indication | Front Panel LED Indicates Current Peaks |
| Loop Connector/s | Level Cable Clamp |
| Perimeter Loop - Coverage | 1:1 Aspect Ratio - 215 sq ft. (20 m²), 2:1 Aspect Ratio - 323 sq ft. (30 m²), 3:1 Aspect Ratio - 377 sq ft. (35 m²)Condition 1 - Loop must be 3-6 ft. (1-2 m) above or below the receiver height, Condition 2 - There should be no metal structures in the plane of the loop, Condition 3 - There must be sufficient voltage to drive the loop |
| VOX Switching | To control prioritization of micorphone 1 input |
| Compliance | UL Listed |
| Power | 12 VDC, 1.0 A, 18 W, 45-65 Hz, Power Switch/Led on Front Panel |
| Drive Voltage | 3.2 V (RMS), 4.5 V Peak at Maximum Output Current |
| Drive Current | 2.4 A (RMS), 3.4 A Peak with 1 kHz Sine Wave |
| Drive Current Peaks | Short Term > 4.8 A |
| Width | 5.0 in. (128 mm) |
| Height | 1.4 in. (35 mm) |
| Depth | 2.9 in. (74 mm) |
| Shipping Weight | 2.2 lbs. (0.99 kg) |
| Mounting | Freestanding, Wall Mounting |
| Cable Length | 10 AWG - Max distance at full current -268 ft. (82 m), 14 AWG - Max distance at full current -247 ft. (75 m), 18 AWG - Max distance at full current - 168 ft. (51 m), 22 AWG - Max distance at full current - 94 ft. (29 m), FB1.8 - Max distance at full current - 328 ft. (100 m) |
| Weight | 1.0 lbs. (454 g) |
| Relative Humidity | IP20 Protection, 20 to 90% Relative Humidity, 32 F (0 C) to 95 F (35 C) |
| * Specifications subject to change without notice. |
