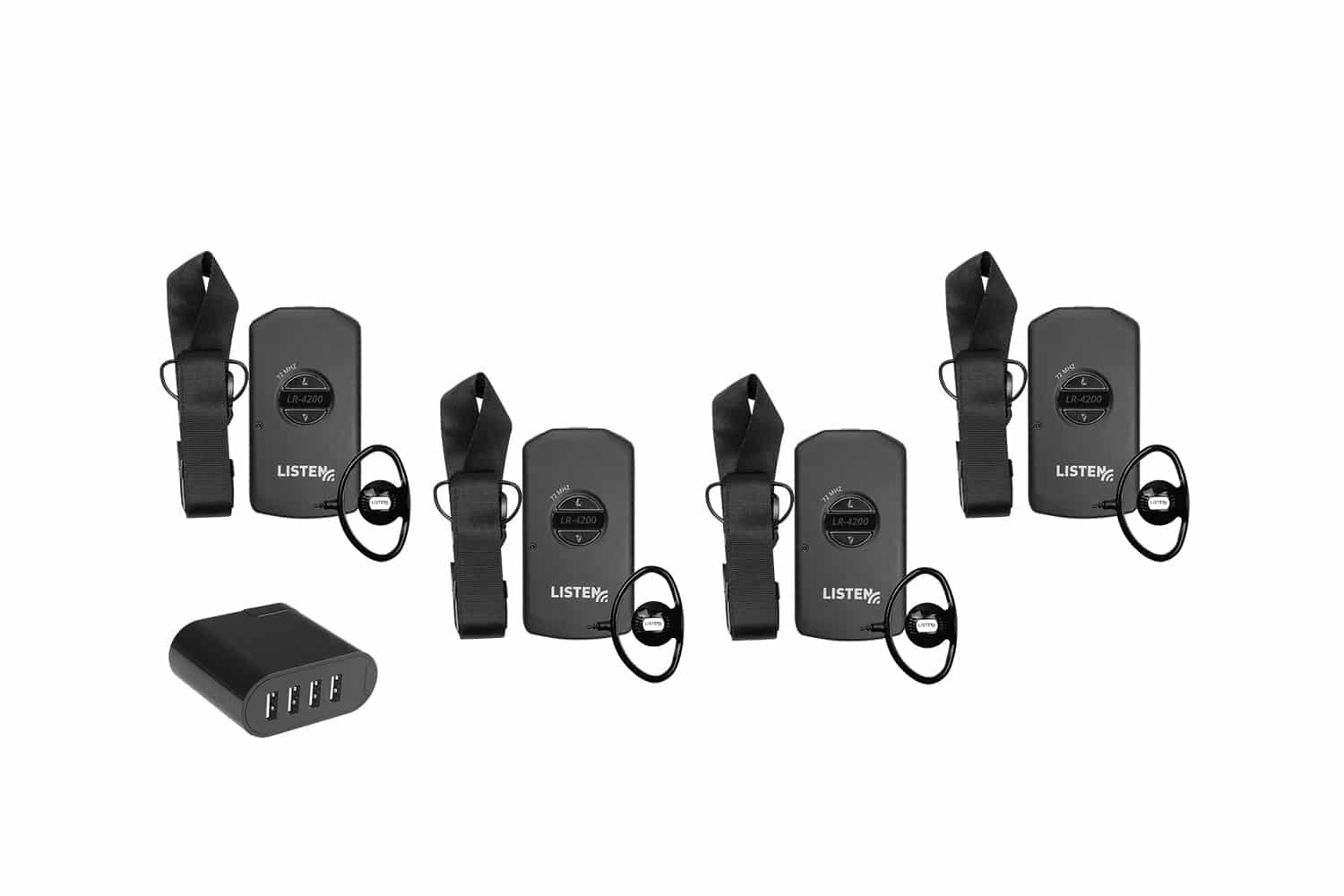

Composite image of four RF receivers, four neck straps, four ear buds, and one 4-port USB charger.

Intelligent DSP RF Receiver 4-Pack (72 MHz)

Item:LP-39-072-01

Ideal for upgrading or expanding your existing 72 MHz RF system, the LP-39-072 Intelligent DSP RF Receiver 4-Pack includes everything needed to provide your visitors with exceptional assistive listening service.

Each pack includes four of our LR-4200-072 digital RF receivers, which feature Listen Technologies’ unique DSP SQ (TM) noise reduction technology, an OLED display, dual 3.5 mm output jacks, and more.

The Micro USB connection is used with free iDSP software for set up, programming, firmware updates, inventory management and charging.

Download Product Data Sheet
See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

Four (4) LR-4200-072 Intelligent DSP RF Receiver (72 MHz)*
Four (4) LA-401 Universal Ear Speaker
Four (4) LA-445-BK Breakaway Lanyards.
One (1) LA-423 4-Port USB Charger

*The LR-4200-072 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • 4-pack of Listen Technologies’ industry leading RF receivers
  • Advanced DSP SQ (TM) noise reduction technology provides 20 dB less noise than other listening devices
  • Smallest device of its kind is easy to carry, wear, and use
  • OLED display provides easy channel selection, programming, and battery level monitoring
  • Environmentally friendly rechargeable batteries for extended use, easy charging, and long life

Specs

+Physical

Shipping Weight6.0 lbs (2.7 kg)

FAQs

+What is the difference between the LR-4200 and the LR-5200?

The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What type of battery technology does the LR-4200 use?

The LR-4200 uses a non-proprietary field replaceable Lithium Ion battery.

+How long does it take to fully charge the LR-4200?

It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.

+How many LR-4200 receivers can I use in a system?

As many as you need, the number is endless.

+How long will the LR-4200 run on a fully charged battery?

The LR-4200 will run continuously for 8 hours on a fully charged battery
