This product has been discontinued. The LW-160-02 ListenWIFI 2 Channel Server (Dante) has replaced this product.

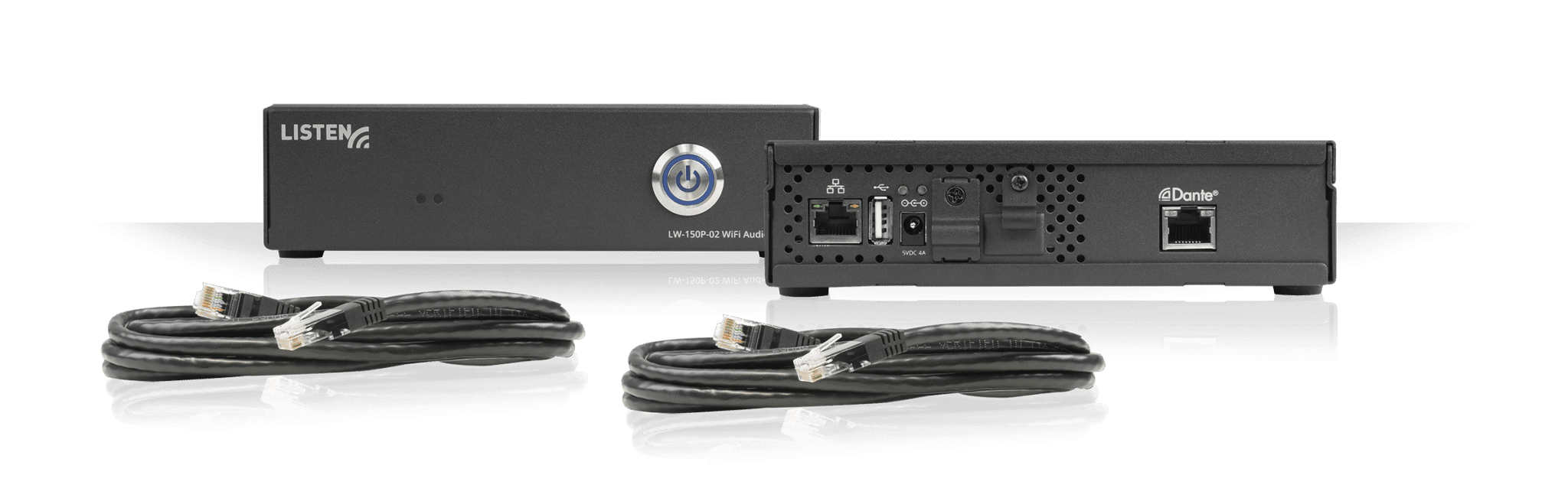

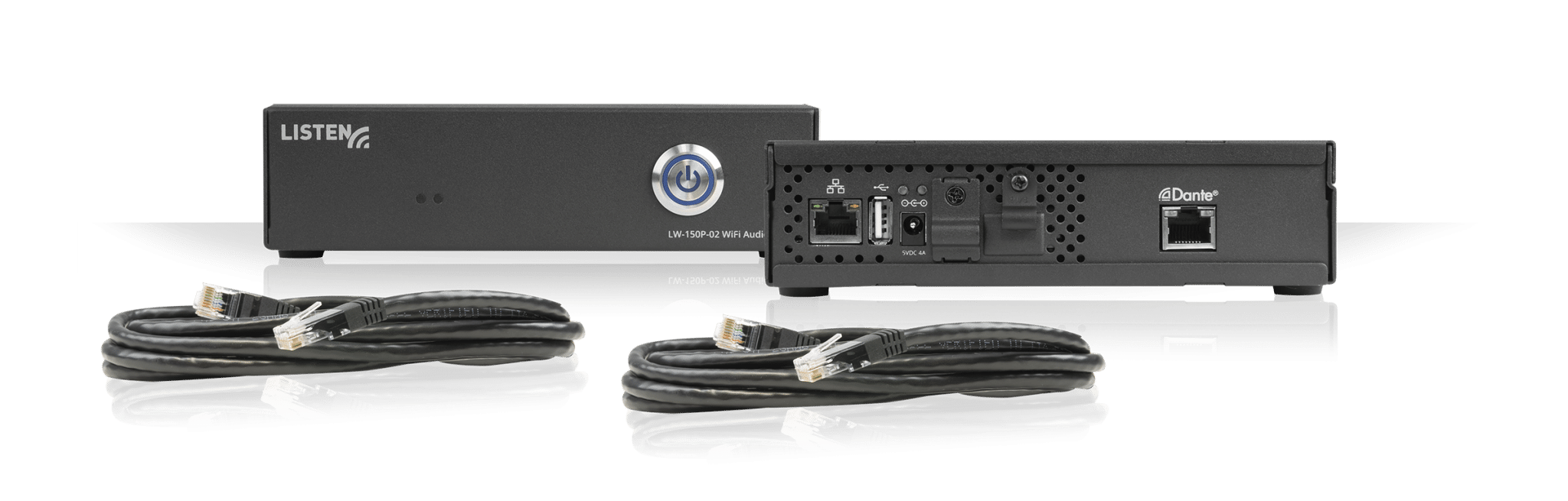

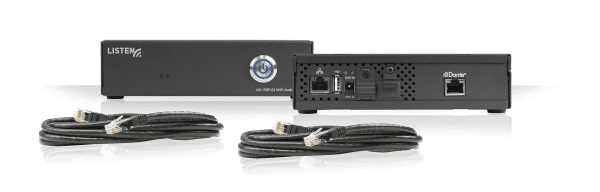

Front and back view of the LW-150P-02-D servers

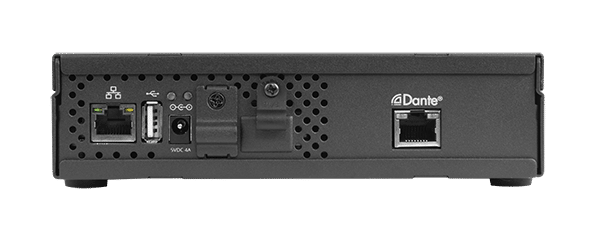

Rear panel of the LW-150P-02-D showing connections

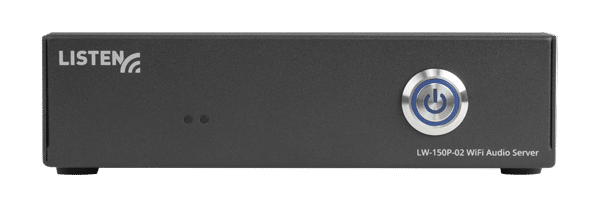

Front view of the LW-150P-02 two-channel server with Dante onboard.

Listen EVERYWHERE 2 Channel Wi-Fi Audio Server (Dante) (DISCONTINUED)

Name: Listen EVERYWHERE 2 Channel Wi-Fi Audio Server (Dante) (DISCONTINUED)
SKU: LW-150P-02-D
Price: 1595.00 USD
Availability: InStock

Item:LW-150P-02-D

The Listen EVERYWHERE LW-150P is an affordable way to deliver 2 Dante® audio channels to audiences of up to 1000 users. The rear panel Dante input allows for easy audio routing and management via Dante Controller® software. Simply connect to your existing Wi-Fi network and stream low latency audio directly to guest’s devices using the free mobile app, or by providing Wi-Fi Audio Receivers at your venue to meet ADA compliance. Cloud-based management allows for simple management of the server and listening devices, including supporting custom welcome message videos or logos, sliding banners, and more, all providing another point of contact with your clients and customers. Experience great quality audio and industry leading low latency audio at your venue with a Dante enabled 2 channel Wi-Fi Audio Server.

Download Product Data Sheet

See Architectural & Engineering Specs

This product is available through authorized resellers.

Includes

One (1) LW-150P-02 Listen EVERYWHERE 2 Channel Wi-Fi Audio Server (Dante) w/Power Supply
Two (2) 1.83M (6 ft.) CAT6 Cables
One (1) Quick Start Guide

Highlights

2 channel Dante® input
Audio routing and management via Dante Controller® software
Uses existing wireless network (Wi-Fi)
Low latency (see demo video)
ADA compliant (with receivers and neck loops)
Stream audio to venue provided receivers and guest devices
2 channels per server (stackable)
Up to 1000 users
Great quality and reliability
Simple to setup
Low power consumption
Heavy-duty chassis

Also Needed

Assistive Listening Notification Signage Kit

SKU: LA-304

Listen EVERYWHERE Wi-Fi Audio Receiver 1020 - Legacy

SKU: LWR-1020-b

Specs

+Interconnections

Dante Audio Input	RJ-45 input supports Dante Audio over IP
	Sampling rate 48 kHz, bit depth 24
	Maximum 100m (328') CAT5/6 cable length
	*Stereo operation requires the use of both inputs
Ethernet	RJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.
USB	Type A 2.0 (female)

+Power Supply

Connector	DC Barrel Connector
Input Voltage	100-240 VAC, 50-60Hz
Output Voltage	5 VDC
Current	6.0 A
Power	30 W
Configurations	01= North American Plug B; 02= United Kingdom Plug G; 03= European Union Plug F; 04= Australia Plug I

+Servers

IP Address	DHCP, Static, Reserved
Prioritization	QoS/ToS
Users	1000 (per server)
Max Channels	2 mono (1 stereo) - Multiple servers may be used to increase the number of channels.
WAP Support	802.11n or better w/WMM enabled
Supported WAP Frequencies	2.4 GHz & 5 GHz
Bandwidth Use	125 kbps per user
Frequency Response	20Hz – 20kHz ±1dB
Dynamic Range	90 dB
Signal to Noise Ratio (SNR)	78 dB typical (at nominal input levels)
Bit depth	16 bits
Sampling Rate	48 kHz
Channel Security	AES-128-CBC
System Latency	40 - 80 mS (60 mS average). This can vary per network and mobile device.
Total Harmonic Distortion (THD)	<1%
App Support	iOS/Android
Cloud Service	Yes, cloud service is available for remote server maintenance/updates. Cloud service also supports customization of the Android and iOS mobile apps, such as app theme settings, welcome ads, sliding banners, channel logos, channel names, pdf documents, and offers.
Warranty	2 years

+Physical

Dimensions (H x W x D)	45mm x 170mm x 117m (1.77in x 6.69in x 4.6in)
Weight	.59 kg (1.3 lbs)
Shipping Weight	1.6 kg (3.6 lbs)
Rack Space	1/2 RU

+Environmental

Temperature - Operation	-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage	-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity	0 to 95% relative humidity, non condensing

+Compliance

Regulatory Standards

UL, FCC, CE, KCC, UKCA

Specifications subject to change without notice

Accessories

Listen EVERYWHERE Wi-Fi Audio Receiver 1020 - Legacy

SKU: LWR-1020-b

Universal Rack Mounting Kit

SKU: LA-326

Assistive Listening Notification Signage Kit

SKU: LA-304

Black Listen everywhere replacement supply product

ListenWIFI/ EVERYWHERE Replacement Power Supply

SKU: LA-504

How-To's

FAQs

+Does a Listen EVERYWHERE system allow me to be ADA compliant?

Yes! But you will also need to provide Wi-Fi audio receivers as well as neck loops to meet requirements per the ADA. Check out our ADA calculator to ensure you have the proper quantity of each based on your venue size.

+What if I need more than two channels of Listen EVERYWHERE audio?

With a Listen EVERYWHERE system, you can add additional servers, and the mobile app and receivers will find all the channels. There is no limit to the number of channels you can have with Listen EVERYWHERE. The only limitation would be the network.

+What suggested network configurations are needed for the Listen EVERYWHERE server?

Please refer to our Network Guide for Listen EVERYWHERE tech note. You can access all of our tech notes for Listen EVERYWHERE on the Listen EVERYWHERE support page.

+Why are some channels not showing up in the app?

Your server may be set to Stereo channel configuration, which requires 2 merged channels to send left and right audio. Also, channels may have been disabled on your server. You can use the Listen EVERYWHERE Cloud Services to modify your channel configuration and gain access to all available channels. If you have never used cloud services before, you can request login credentials on the Listen EVERYWHERE Support page.
