This product is discontinued and the information here is only for reference.
Listen Premiere Level I Stationary RF System (72 MHz) (Discontinued)

Listen Premiere Level I Stationary RF System (72 MHz) (Discontinued)

Item:LS-47-072
Discontinued

The LS-47-072 Premiere Level I system comes equipped with our LR-400 digital display receivers, which make it easier to monitor channel selection, battery level, and signal strength. Ideal for applications when assistive listening, single channel language interpretation, and personal use are desired. Venues will benefit from managing the LR-400 when locking on one channel is needed, but programming multiple channels are not or if the receiver channel is not changed regularly by the user. The included neck loops and signage ensures the system meets the minimum legislative requirements for veunes with a capacity up to 100. Telescoping antenna gives smaller venues the option for using the transmitter within a 198 m (650 ft.) range.

Download Product Data Sheet
See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

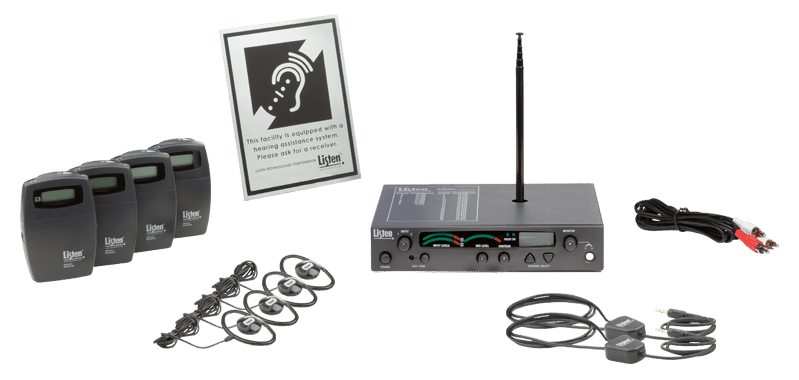

Includes

One (1) LT-800-072-01 RF Transmitter (72 MHz)
One (1) LA-106 Telescoping Top Mounted Antenna (72 MHz)
Four (4) LR-400-072 Portable Display RF Receiver (72 MHz)
Four (4) LA-164 Ear Speaker
Two (2) LA-166 Neck Loop
One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)
Four (4) LA-361 High Capacity AA Alkaline Batteries (2)
One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Ensures public venues deliver an enriched listening experience while meeting new legislative requirements for assistive listening
  • Superior audio quality – 80 dB signal-to-noise ratio (SNR), setting the industry’s sound quality standard
  • Offers 57digital channels – Listen receivers are digitally-tuned so the transmission won’t drift

Also Needed

Specs

+Physical

Shipping Weight10.0 (4.5)

Accessories

How-To's

FAQs

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What is the difference between the LR-400 and the LR-500?

The LR-500 gives the user an opportunity to lockout unused channels and has the controls on the outside of the front door.

+Can the LR-400 be used with multiple transmitters?

Yes. The LR-400 can be used with multiple transmitters, but unlike the LR-500, it cannot be programmed to lock out channels.

+What is the transmission range of the LS-47-072 system?

Up to 198 m (650 ft.) with the included telescoping antenna (LA-106). For greater range up to 305 m (1,000 ft.) the universal antenna kit options found in the Level II and II Premiere systems.

+Can I purchase additional LR-400-072 receivers for my LS-47-072 system?

Yes! Order as many as needed. The additional receivers will need an earphone (LA-164) or any other Listen earphones and batteries before being used.

+What is squelching?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function is preset and cannot be changed on the LR-300.

+How many receivers can I have in a system?

As many as you need, the number is endless.

+What are the ADA changes related to assistive listening systems?

Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.
