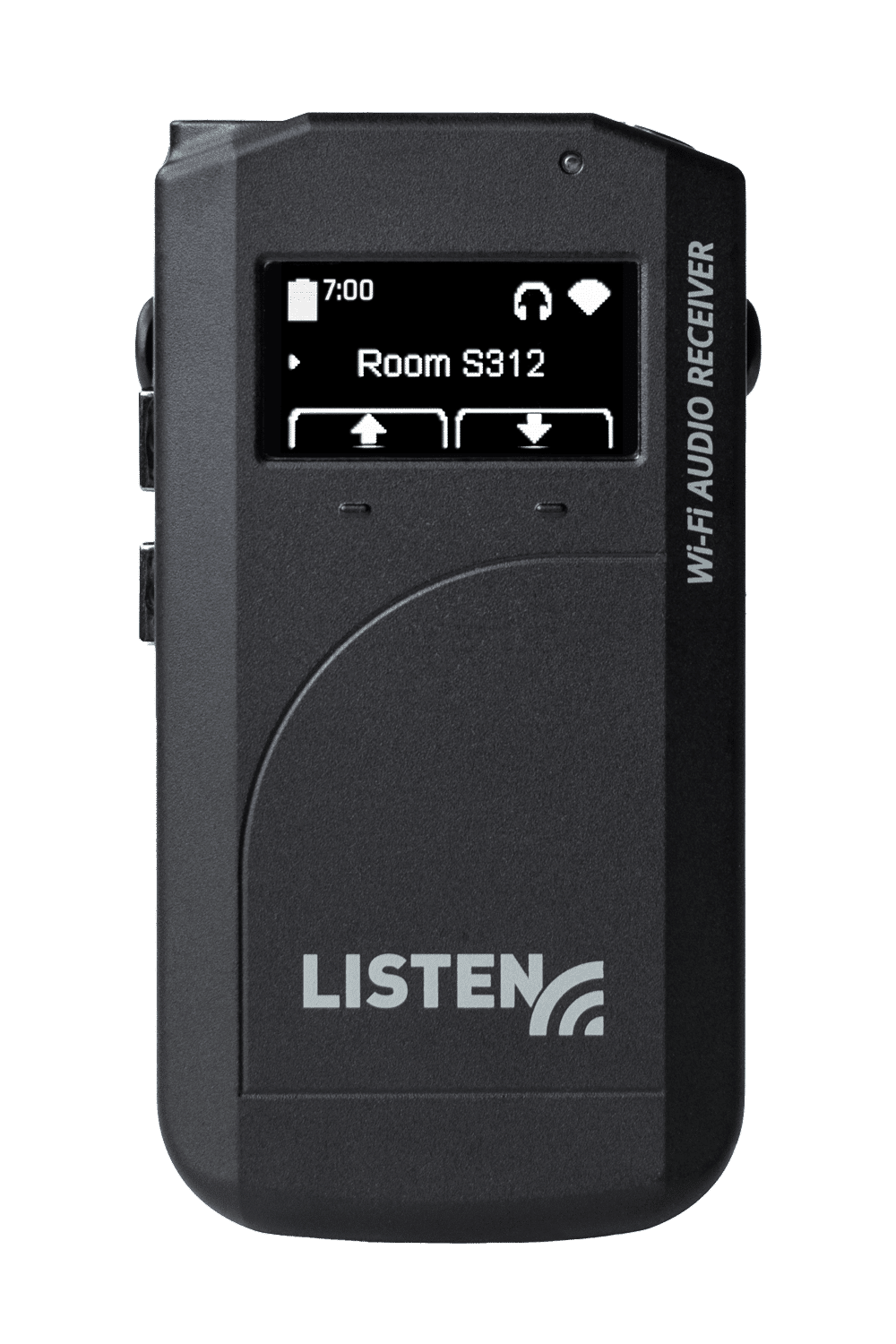

ListenWIFI Wi-Fi Audio Receiver

Name: ListenWIFI Wi-Fi Audio Receiver
SKU: LWR-1050
Availability: InStock

Item:LWR-1050

The ListenWIFI Audio Receiver LWR-1050 offers advanced assistive listening capabilities, enabling venues to comply with disability and accessibility standards. It streams real-time audio from ListenWIFI Audio Servers via Wi-Fi directly to receivers, providing crystal-clear, low-latency audio. Venues can easily distribute these receivers to guests for an enhanced listening experience.

The LWR-1050 is highly automated, connecting automatically to the appropriate channel based on its location with the help of Listen Beacons. This ensures a seamless audio experience, especially useful in venues with multiple channels. For added convenience, the receivers can be used with wired headphones or an inductive neck loop for hearing aids with a T-Coil, simplifying the management of hearing assistance devices and reducing the complexity of supporting personal smartphones.

Ideal for various settings, such as classrooms, places of worship, and theaters, the LWR-1050 provides superior assistive listening.

Download Product Data Sheet

See Architectural & Engineering Specs

Configurations

LWR-1050-A0 (North America)

LWR-1050-E0 (European Union, United Kingdom)

LWR-1050-Z0 (Australia, New Zealand)

Architectural Specs

The ListenWIFI LWR-1050 Wi-Fi Audio Receiver shall be a digital receiver operating in the 2.4 and 5 GHz unlicensed Wi-Fi bands. The device shall be able to receive high quality, low latency audio channels being broadcast from ListenWIFI servers on a local area network.

The device shall be simple to operate with easy to access power button on top, channel up and down buttons on the front, and volume up and down buttons on the side. It shall have a 3.5 mm TRRS CTIA compliant headset connection on top, allowing the connection of standard wired earspeakers and headphones. The device shall have a 64 x 128 OLED display with auto dimming capabilities, displaying the current device status (volume level, mute, profile name, battery and charging status, time remaining, Wi-Fi signal strength, language, unit ID, etc.). It shall be powered via a field-replaceable, non-proprietary rechargeable lithium-ion battery, and have a 7 hour run time of continuous audio streaming. The device shall incorporate automatic battery charging circuitry to charge and maintain the lithium-ion battery via the USB micro connector on the side, or via a Listen Docking Station utilizing contacts on the bottom of the device.

The device shall also support automatic channel triggering. It shall have an infrared photodiode that detects an Infared (IR) SyncLink® signal allowing the device to automatically trigger and connect users to a specified channel when in range of a Listen Beacon. For multi-lingual applications, the receiver shall automatically connect users to their preferred language. Manual channel selection may also be made available via the soft buttons on the front panel.

The device shall employ full encryption of all control and data communications, ensuring security and complete confidentiality. The device also supports PIN or password protection of audio channels for highly confidential applications. The device shall have a signal-to-noise ratio of 84 dB or greater and shall have an audio frequency response of 20 Hz – 20 kHz (±1 dB). The receiver shall have audio latency of less than 40 mS on a good and properly configured network.

All ListenWIFI system components at a venue, including receivers, shall be set up and managed via the ListenWIFI Manager installed software which shall not be required during use or runtime. The software shall support full configuration and management of a venues ListenWIFI audio system, including servers, mobile apps, receivers, and beacons. The Manager software shall have an integrated firmware update tool for all system components.

The ListenWIFI LWR-1050 Wi-Fi Audio Receiver is specified.

This product is available through authorized resellers.

Includes

One (1) LWR-1050 Wi-Fi Audio Receiver
One (1) LA-365 Rechargeable Li-ion Battery
One (1) Quick Start Guide

Highlights

Dedicated Wi-Fi Audio Receiver for assistive listening and language translation
Meets ADA and worldwide disability compliance (DDA, IBC, CBC, etc.)
Dedicated devices for venues where personal smartphones are not allowed
Backup devices for venues who want to avoid the hassle of supporting personal smartphones
Extremely easy for guests to use
Automatically connects to proper channel based on location (with LA-490 beacons)
Superior audio performance & Industry-leading latency
Great quality and reliability
Compatible with standard earbuds & headphones (CTIA compliant)
Compatible with hearing aid telecoils with optional Neck Loop (LA-438)
Field Replaceable lithium-ion rechargeable batteries
Easy setup, management, and tracking using ListenWIFI Manager for Windows®

Also Needed

Specs

+Physical

Dimensions (H x W x D) with Belt Clip	10 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.)
Unit Dimensions (H x W x D)	10 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.)
Unit Weight	80 g (2.82 oz.)
Shipping Weight	105 g (3.7 oz.)
Enclosure material	PC plastic (IR transparent)
Display	31 x 16 mm (1.22 x .63 in) , 64 x 128 pixel OLED display
LED	Multi-colored, multi-function
Light Sensor	Visible light, automatically adjusts display brightness
Color	Black, Chrome Buttons
User Controls	Volume up/down, channel up/down, language selection, power, status
Headphone Connection	3.5mm (1/8") headphone jack, TRRS, CTIA compliant
USB Connection	USB-Micro for charging and programming
Dock Connection	4 contacts w/ magnetic latch for charging and programming via docking station
Belt Clip	Removable and Reversible
Battery Door	Removable for battery replacement

+Audio

Audio Output Method	3.5mm connection for wired headphones or inductive neck loops
Frequency Response (system)	20 Hz - 20 kHz ± 1dB (at nominal level)
Distortion (system)	< 1% Total Harmonic Distortion (at nominal level)
Signal to Noise Ratio (system)	> 74 dB (at nominal level)
Dynamic Range (system)	86 dB (at maximum level)
Latency (system)	40-60 ms, dependent on network, traffic, and QOS

+Communications

Wi-Fi Bands	802.11 a/b/g/n (2.4 and 5 GHz)
Wi-Fi Frequencies	2.4 GHz Channels: 1,2,3,4,5,6,7,8,9,10,11
	5 GHz Channels: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128*,132,136,149,153,157,161,165
	*Channels not available in North American variant (A0)
Bluetooth	5.0
USB	2.0
Audio	125 kbps for audio streaming
Security	TLS 1.2 (AES 128 bit)
Infrared (IR)	Protocol: SyncLink IR, 850nM

+Controls

User Controls	Power on/off, display on/off, channel selection, volume up/down, language selection
Setup/Programming	Via Manager Software and USB port on receiver Via Manager Software and USB port on Docking Station Directly in Docking Station using the clone operation
Channel Triggering	Automatic via SyncLink Infrared (IR) when in proximity to LA-490 beacons.

+Indicators

Display	Channel playing, available channels, battery level with time remaining, Wi-Fi signal strength, volume status, charging status, language selection, profile name
LED	Blue flashing - receiver is turning on/booting up
	Red flashing - indicates receiver has not been configured or Wi-FI is unavailable
	Green flashing - receiver is charging
	Green solid - receiver is fully charged

+Power and Charging

Power Supply	USB-Micro or Docking Station - 5V, 500mA
Battery Type	Lithium – ion, rechargeable, field replaceable
Battery Size	1200 mAh
Battery Life	7 hours of continuous audio streaming
Battery Charge Time	Fully charged in < 4 hours (dead battery)
Power Save Modes	Auto Off - powers down on loss of audio (adjustable OFF, 10, 20, or 30 min)
	Auto Power - powers down/up upon insertion/removal of charger (adjustable ON/OFF)
	Jack Sense - powers down/up upon insertion/removal of headphones (adjustable ON/OFF)

+Environmental

Temperature - Operation	-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage	-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity	0 to 95% relative humidity, non condensing

+Compliance

Regulatory Marks

FCC, CE, ROHS, UKCA

+Warranty

Receiver Warranty

2 years

*Specifications are subject to change without notice.
