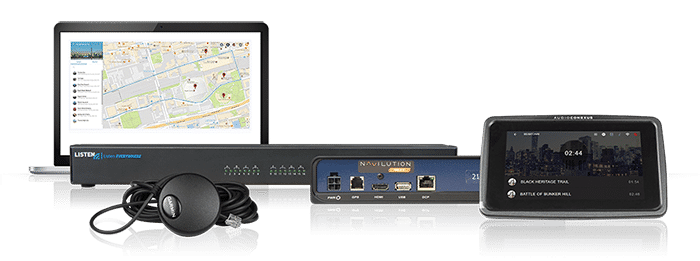

All products included in the Navilution Listen EVERYWHERE 16-CH System
LN-200E Navilution Server NEXT front F ANT
LN-200E Navilution Server NEXT Back

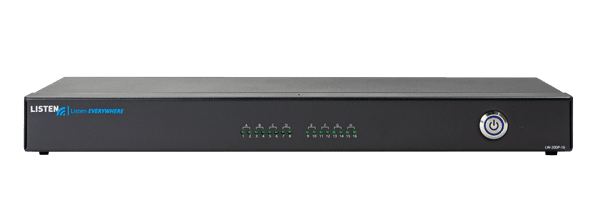

LW-200P-16 front view of Listen EVERYWHERE 16 Channel Server

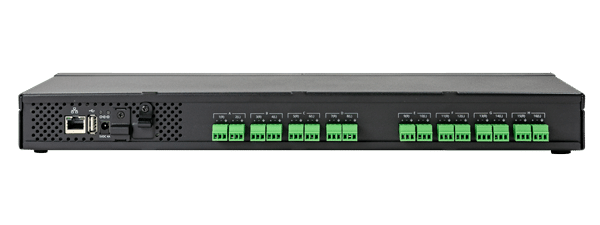

Back view of the LW-200-P-16 16 channel Listen EVERYWHERE server

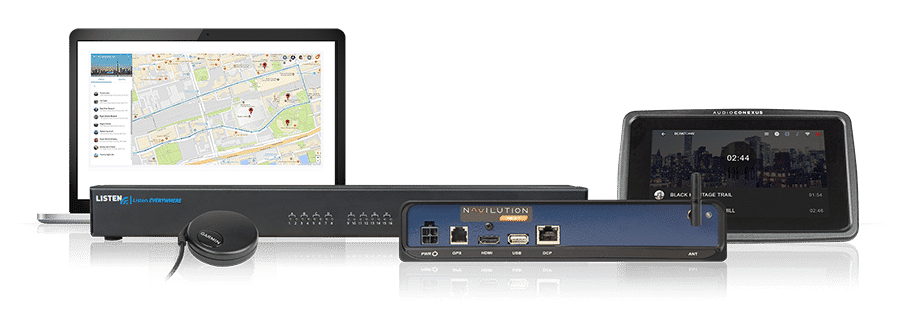

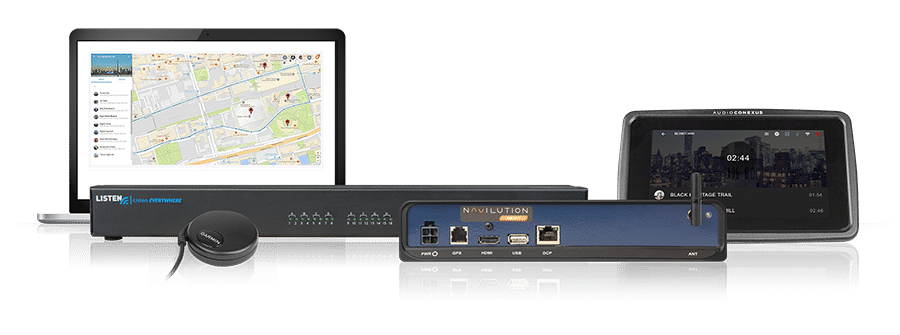

ListenTech Navilution ListenEverywhere LNS-216N 16-Channel Collage

Navilution Listen EVERYWHERE 16-CH System

Item:LNS-216N

The Navilution Listen EVERYWHERE 16-CH System is a GPS triggered commentary system with 16 channels for simultaneous delivery of audio to passenger’s smartphones in different languages and topics.  Simple and safe, this system allows passengers to use their own iOS or Android smartphone to select a channel and adjust volume. As an option you can purchase Listen EVERYWHERE receivers for passengers who don’t have smartphones. After passengers download the free app, there is no internet required. And, the app can be customized to your brand. The system includes a display control panel and external GPS antenna/receiver for reliable GPS triggering.  Route planning, GPS triggers and tour development is simple and easy using Navilution Cortex, a proprietary cloud-based software tool. For audio tour development, there is basic, advanced and creative tour development training and Listen tour development partners that can help in the development of your audio tour. The system also supports video delivery to an onboard monitor to enhance passenger experience and can be used for ASL.

The Display Control Panel (“DCP”) is an external display that improves safety and reduces drivers and captains’ distractions. Displaying the elapsed time of audio tour commentary, drivers and captains manage route timing without slowing down or speeding up. The easy to read touch screen shows the audio commentary playlist, with play, pause, and stop features for guides. Users access safety and emergency announcements, off-route audio commentary, and quickly set the language to play over the public address system’s speakers using one-finger touches.



For Training Programs – click here

Download Product Data Sheet
See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) LN-200N Navilution NEXT Server
One (1) LN-075-DCP Navilution Display Control Panel
One (1) LN-050-GPSR Navilution GPS Receiver
One (1) LW-200P-16 Listen EVERYWHERE 16-Channel Server
One (1) LNA-048-POE Listen Navilution SCI V2.0 POE Power
Four (4) LA-508 RCA Mono to Terminal Block Cable (Qty: 4)
One (1) Quick Start Guide
Cortex – Cloud-based Tour Development Software

Highlights

  • GPS triggered commentary system with up to 16 channels for simultaneous delivery of audio to passengers in different languages and topics.
  • Simple and safe – passengers use their own iOS or Android smart phone, for the bring your own device experience enabling a superior end user listening experience and no operation device distribution challenges.
  • Customize the app to fit your brand and share more information.
  • Proprietary Cortex cloud-based tour development software makes it simple, easy and fast to build audio tours. Basic, advanced and creative tour design training available and tour development partners can create your tours.
  • HDMI video delivery of story supporting visual experience or ASL for the hearing impaired and deaf.
  • Display Control Panel (DCP) enable the operator to start/stop tours.
  • Local audio-video integration sales, installation and support.

Also Needed

Specs

This specification only details the specification of the LN-200N server. For specifications of the other components of this system, please go to the product page of that component.

+Physical

Dimensions (H x W x D)44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.)
Unit Weight1.54 kg (3.4 lbs.)
Shipping Weight2.27 kg (5 lbs.)

+Controls

IMP SwitchPA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu

+Indicators

Power / Status LEDSolid Green under normal operation. Flashes Green when uploading tours or firmware updates.
DCP Port Green LEDSolid Green, physical link established. Flashing Green, data transfer.

+Interconnections - Rear Panel

PowerMolex CONN HEADER R/A 4POS 5.7MM
GPSRJ-11, Dedicated connection to LN-050-GPSR GPS receiver.
HDMI(High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments.
USBType A 2.0 female
DCPRJ-45, Dedicated port for LN-075-DCP Display Control Panel connection.
ANTSMA Antenna, Female for Wi-Fi Control.

+Audio - In

Nominal Level-10dBu
Max Level+13dBu
Noise Floor-75dBu
Dynamic Range88dB
Impedance3K Ohms
Frequency Response+/-1dB from 20Hz to 20KHz
Signal-to-Noise Ratio65dB
Total Harmonic Distortion< 0.05 @ 1KHz

+Audio - Mic A & B

Nominal Level-45dBu to -35dBu
Max Level-19dBu
Impedance 100K Ohms
Frequency Response+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion0.04% @ 1KHz

+Audio - PA Out

Nominal Level-22dBu
Max Level-10dBu
Noise Floor-69dBu
Dynamic Range59dB
Frequency Response+/-4dB from 20Hz to 15KHz
Total Harmonic Distortion< 0.2% @ 1KHz

+Audio - Out

Nominal Level-15dBu
Max Level-3dBu
Noise Floor-75dBu
Dynamic Range72dB
Frequency Response+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion< 0.1 % @ 1KHz

+AC Power Supply (LA-211-0X)

AC Power Supply Input120 - 240VAC, 50/60Hz, 2.5A
AC Power Supply Output24VDC, 10A
ConnectorMolex CONN RCPT HSG 4POS 5.70MM
Fuse20A Blade Fuse, ATO (Regular).
ComplianceFCC, CE

+DC Power Cable (LNA-040-PC)

ConnectorMolex CONN RCPT HSG 4POS 5.70MM
Fuse20A Blade Fuse, ATO (Regular).
Cable Length183cm (72 in.)

+Environmental

Temperature - Operating0 C to +40 C (32 F to +104 F)
Temperature - Storage-20 C to +50 C (-4 F to +122 F)
Relative Humidity0 - 95%, Non condensing

+Compliance

StandardsFCC, IC, RoHS, TUV, CE

+Server

ProgrammingVia Cloud Software: Navilution Cortex software for route building and content management.
Max Channels16
Audio Media File Formatmp3, 128kbps, mono
Audio Bit Depth16 Bit
Audio Sampling Rate44.1KHz
Video Media File FormatMP4
Max Trigger points120 per route
Wi-Fi Control2.4Ghz HTTP

Accessories

How-To's

FAQs

+Is it possible to expand a Navilution LE system to more than 16 channels?

There is a maximum of 16 audio channels available in a single Navilution Listen EVERYWHERE system, however duplicate systems can be deployed to add additional channels.

+Does a Navilution LE server come with a wireless access point?

No, that is purchased separately.

+What wireless access point should I use?

Refer to Listen support notes on wireless access points or contact your audio-visual integrator.

+How many phones can be connected to a Navilution Listen EVERYWHERE (LE) system?

1,000 phones can be connected to a Navilution Listen EVERYWHERE (LE) System

+How does a passenger use Listen EVERYWHERE?

Passengers use QR codes to download the app and get on the Wi-Fi network. The language is automatically selected based on the language of the phone and customers can also manually select channels, languages, and/or tour topics.

+Is the Navilution LE system secure?

Yes. The Wi-Fi network can be password protected.

+Why should I choose the Navilution System from Listen?

For over 23 years, Listen has been a quality developer and manufacturer of reliable and mission-critical audio-visual equipment to the world. Rest assured, you know that Listen is constantly improving and supporting its products. And our worldwide audio-visual partners will be there to support you in the design, installation, and maintenance of your system today and as you expand to meet future demands.

+How do I get support for my Navilution system?

Call your local reseller you purchased it from and/or call Listen directly. We provide support in most countries worldwide.

+What are the options for power on a Navilution Server?

The Navilution Server can be powered from a vehicle DC power source that is 12VDC to 24VDC or it can be powered from an 100-240 VAC, 50-60Hz AC power supply.

+I need a single language system going to the PA system in my vehicle or vessel – which system should I purchase?

Any Navilution system can be used for your PA system. However, if you ever wanted to add seatback controllers, you would want to use a Navilution EVO system or if you ever wanted to upgrade to a Listen EVERYWHERE system for Wi-Fi commentary delivery to smart devices, you would want to use a Navilution NEXT system.

+How many channels does Navilution EVERYWHERE System have?

The Navilution EVERYWHERE System has 16 channels that can be expanded by duplicating systems.

+I already have my audio stories recorded. Can they be used on Navilution?

Yes. Simply import them into Cortex, Listen’s proprietary on-line tour development software.

+What format should the audio files be in?

Audio files need to be in .mp3 128kbps Mono 44.1khz format. Whatever format your audio files are in they can easily be converted to meet those parameters using free software on the internet. These files will have to follow a specific file naming protocol so that Cortex can recognize different language files.

+How do you get route information, GPS coordinates and tour audio onto the Navilution server?

Using the proprietary on-line software called Cortex, you do the tour development which includes routing planning and adding GPS trigger points on Google maps, and then uploading your audio stories to your media library. Once completed, you export the audio tour to a USB thumb drive and then simply plug the USB drive into the Navilution Server USB port. Your tour automatically updates the Navilution server.

+Is it possible to have both seatback controllers and a Listen EVERYWHERE on the same Navilution server?

No, not at this point. Stay tuned!

+What are my options for purchasing, installing and supporting my Navilution system in my country?

Listen has many audio-visual integrators throughout the world that are experts in designing, programming, installing, and supporting your system. Contact our Sales team at sales@listentech.com to assist with finding an AV Integrator in your area.

+How do you control a Navilution System?

The most common way is to use the included Display Control Panel (DCP). You can also connect to the Navilution server using a smart phone or tablet.

+What does the Display Control Panel (DCP) do?

This is used by the operator to start and stop automated tours, manually start stories and other functions such as setting the default language for audio out to your PA’s systems speakers as well as notifying the operator which story is next in your playlist.

+How does the GPS work?

To ensure reliable operation of system, a Garmin GPS receiver and remote antenna comes standard with all Navilution systems. The antenna should be mounted outside of the vehicle or vessel to ensure it has a strong signal from GPS satellites.

+What happens if you go into a tunnel or a location where there is no GPS signal?

There are two ways of solving this: 1) Just before entering location of the GPS dead spot, you can GPS trigger an audio story to start with a predefined time delay and then trigger the audio story based on the time; or 2) audio stories can be manually started by the operator.

+Can I GPS trigger commentary when delayed by heavy traffic?

Yes, using Cortex you can set up audio stories for both low and high traffic scenarios, so your passengers remain entertained on routes where high traffic is a challenge.

+Can I GPS trigger audio stories if I go down a street in both directions?

Yes, your audio stories will trigger in both directions. You can assign a directional heading to a GPS trigger which means your audio story will only play based on the direction your vehicle or vessel is moving.

+Does GPS triggering work in highly remote areas?

Yes, we work with many operators around the globe, GPS triggering stories from remote mountain canyons, Norwegian Fjords to Middle Eastern deserts.

+Does the Navilution system support assistive listening?

Yes, and you can deliver GPS triggered ASL stories using video to external screens using HDMI out on the server. With Listen EVERYWHERE, users can stream audio to their hearing aids from their smart devices using Bluetooth.

+Can I play music between audio stories?

Yes, you can use music between audio stories, an option in the online tour development software.
