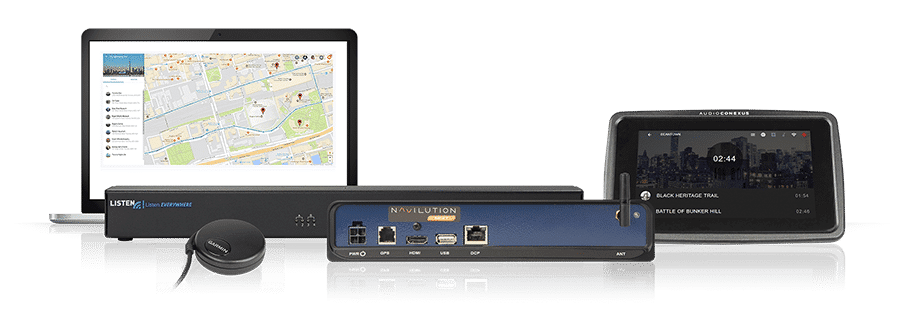

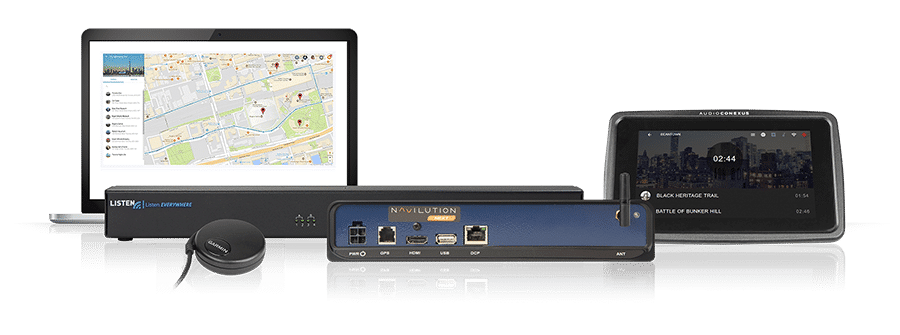

Listen Technologies Navilution ListenEverywhere LNS-204N 4 channel server shown with laptop showing Cortex mapping software, a GPS receiver antenna, a digital control display, and a Navilutiopn server

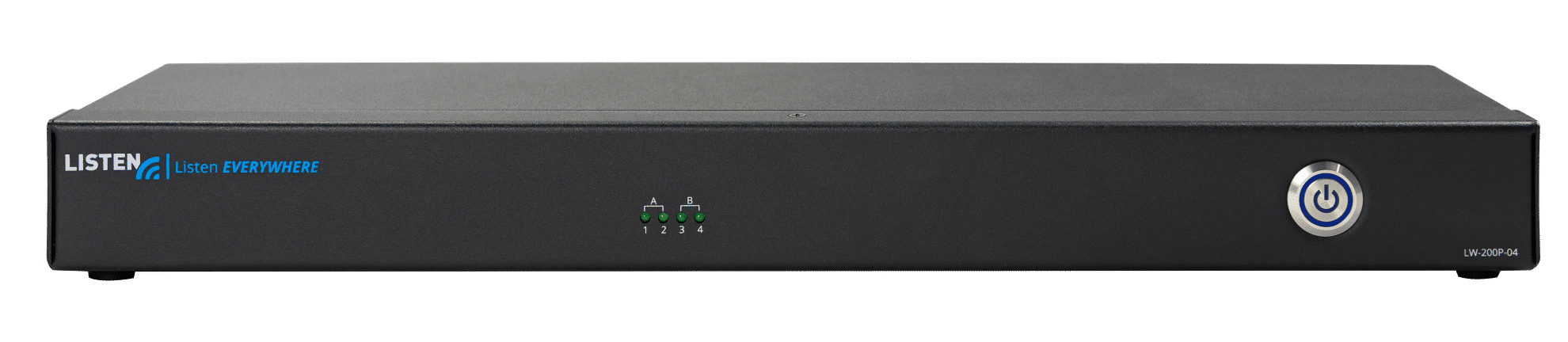

LN-200E Navilution Server NEXT front F ANT

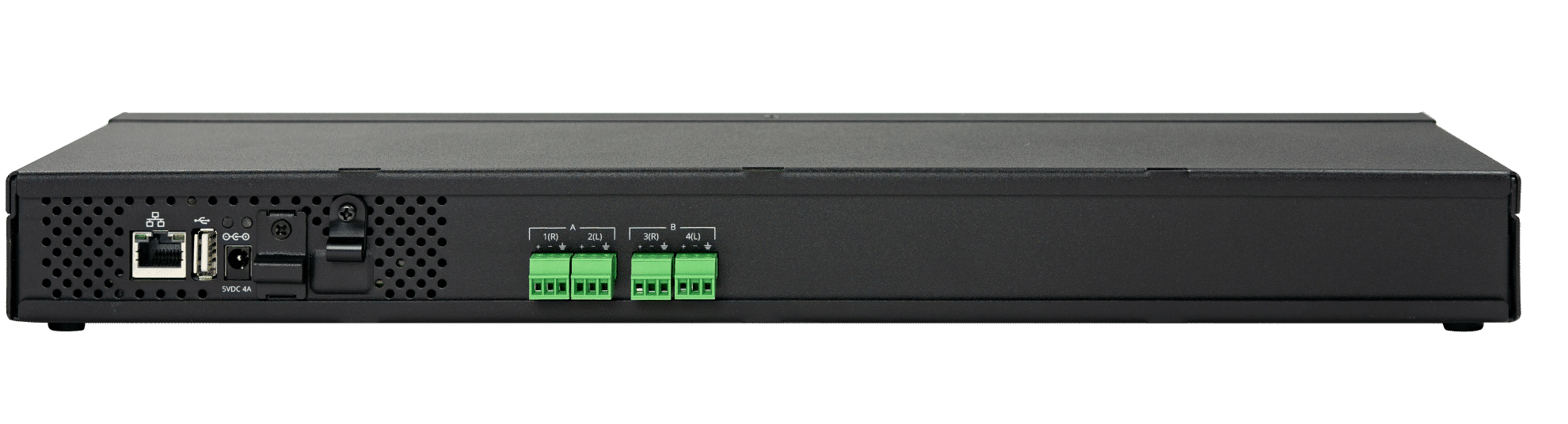

LW-200P-04 Listen EVERYWHERE 4 Channel Server Back View Showing Inputs

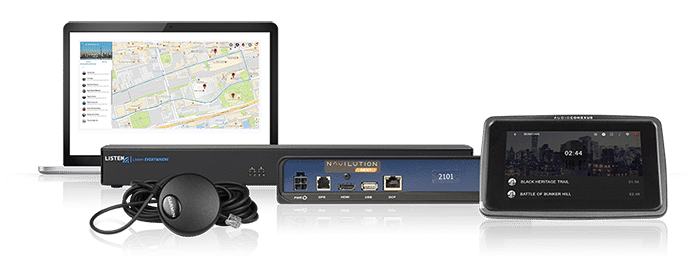

NAVILUTION Listen EVERYWHERE 4 Channel Server Collage

Navilution Listen EVERYWHERE 4-CH System

Name: Navilution Listen EVERYWHERE 4-CH System
SKU: LNS-204N
Availability: InStock

Item:LNS-204N

The Navilution Listen EVERYWHERE 4-CH System is a GPS triggered commentary system with 4 channels for simultaneous delivery of audio to passenger’s smartphones in different languages and topics. The system can be expanded to 16 channels with additional hardware. Simple and safe, this system allows passengers to use their own iOS or Android smartphone to select a channel and adjust volume. After passengers download the free app, there is no internet required. And, the app can be customized to your brand. The system includes a display control panel and external GPS antenna/receiver for reliable GPS triggering. Route planning, GPS triggers and tour development is simple and easy using Navilution Cortex, a proprietary cloud-based software tool. For audio tour development, there is basic, advanced and creative tour development training and Listen tour development partners that can help in the development of your audio tour. The system also supports video delivery to an onboard monitor to enhance passenger experience and can be used for ASL.

The Display Control Panel (“DCP”) is an external display that improves safety and reduces drivers and captains’ distractions. Displaying the elapsed time of audio tour commentary, drivers and captains manage route timing without slowing down or speeding up. The easy to read touch screen shows the audio commentary playlist, with play, pause, and stop features for guides. Users access safety and emergency announcements, off-route audio commentary, and quickly set the language to play over the public address system’s speakers using one-finger touches.

For Training Programs – click here

Download Product Data Sheet

See Architectural & Engineering Specs

Configurations

LNS-204N-DC (12VDC/24VDC) Navilution Listen EVERYWHERE 4-CH System
LNS-204N-01 Navilution Listen EVERYWHERE 4-CH System (North America)
LNS-204N-02 Navilution Listen EVERYWHERE 4-CH System (Asia, UK)
LNS-204N-03 Navilution Listen EVERYWHERE 4-CH System (Europe)

Architectural Specs

The multi-channel GPS triggered commentary system (system) shall be capable of playing four channels of audio simultaneously to be used on a moving vehicle or vessel with the audio being delivered to passenger’s Android or iOS mobile devices; and to an onboard public address system. The system shall be capable of being expanded to sixteen channels. The system shall be triggered automatically via GPS or manually by an operator via a control panel, a mobile device or a foot switch. The system shall include an external GPS 18X OEM, high sensitivity GPS sensor and receiver to ensure reliable location triggering. The system shall be capable of being operated on DC voltages 12VDC or 24VDC or AC voltages 110VAC or 220VAC. The system shall have audio connections to connect to a public address system and shall receive both line and microphone inputs. The system shall have an HDMI output for playing of video on a remote on-board monitor.

Programming of the system shall be done using on-line software based on Google maps and shall include route planning; GPS trigger zone programming; uploading of audio files; and exporting to the system via a USB flash drive or similar.

The system shall use a Listen LW-200P-04 four channel WiFi venue server that shall deliver low latency audio to guest Android or iOS devices. The number of WiFi channels shall be capable of being expanded to sixteen channels with the installation of an additional WiFi server. Guests shall download an application and connect to an onboard wireless access point. From the application, guests shall choose the appropriate language or information channel.

The audio over Wi-Fi venue server shall be capable of broadcasting multiple audio sources over Ethernet to a WLAN access point. Smart phones and tablets shall be able to receive the audio broadcast through a proprietary app. The app shall be made available for download to smart devices through the Apple and Android app stores or other web locations at no charge.

The Wi-Fi venue server shall be rack mountable in one RU 19” rack space and capable of receiving line level audio inputs. There shall be audio input indication through LED’s shown on the front panel of the server. There shall be no user control interface on the server to prevent tampering and facilitate easy setup and operation.

The proprietary app shall support in-app marketing features that the customer can specify and update, including promotional welcome videos, app theme colors, channel names and images or logos. The app shall also support additional features including sliding banner ads, URL hyperlinks, and PDF documents when connected to the internet, which can be scheduled to display based on time of day and day of the week. App customizations shall be programmable by the customer using the Listen Everywhere web service, which also supports venue server configurations and network settings, and provides the ability to push software updates to the venue server remotely. The venue server shall also be accessible through a local Server Admin portal which allows further network configuration.

The LNS-204N Navilution Listen EVERYWHERE 4-CH System is specified.

This product is available through authorized resellers.

Includes

One (1) LN-200N Navilution NEXT Server
One (1) LN-075-DCP Navilution Display Control Panel
One (1) LN-050-GPSR Navilution GPS Receiver
One (1) LW-200P-04 Listen EVERYWHERE 4-Channel Server
One (1) LA-508 RCA Mono to Terminal Block Cable (Qty: 4)
One (1) Quick Start Guide

One (1) LNA-048-POE Navilution SCI V2.0 POE Power

Cortex – Cloud-based Tour Development Software

Highlights

GPS triggered commentary system with up to 4 channels for simultaneous delivery of audio to passengers in different languages and topics (expandable to 16).
Simple and safe – passengers use their own iOS or Android smart phone for the bring your own device market enabling a superior end user listening experience and no device distribution challenges.
Customize the app to fit your brand and share more information.
Proprietary Cortex cloud-based tour development software makes it simple, easy and fast to build audio tours. Basic, advanced and creative tour design training available and tour development partners can create your tours.
HDMI video delivery of story supports a visual experience or ASL for the hearing impaired and deaf.
Display Control Panel (DCP) enable the operator to start/stop tours.
Local audio-video integration sales, installation and support.

Also Needed

Specs

This specification only details the specification of the LN-200N server. For specifications of the other components of this system, please go to the product page of that component.

+Physical

Dimensions (H x W x D)	44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.)
Unit Weight	1.54 kg (3.4 lbs.)
Shipping Weight	2.27 kg (5 lbs.)

+Controls

IMP Switch

PA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu

+Indicators

Power / Status LED	Solid Green under normal operation. Flashes Green when uploading tours or firmware updates.
DCP Port Green LED	Solid Green, physical link established. Flashing Green, data transfer.

+Interconnections - Rear Panel

Power	Molex CONN HEADER R/A 4POS 5.7MM
GPS	RJ-11, Dedicated connection to LN-050-GPSR GPS receiver.
HDMI	(High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments.
USB	Type A 2.0 female
DCP	RJ-45, Dedicated port for LN-075-DCP Display Control Panel connection.
ANT	SMA Antenna, Female for Wi-Fi Control.

+Audio - In

Nominal Level	-10dBu
Max Level	+13dBu
Noise Floor	-75dBu
Dynamic Range	88dB
Impedance	3K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Signal-to-Noise Ratio	65dB
Total Harmonic Distortion	< 0.05 @ 1KHz

+Audio - Mic A & B

Nominal Level	-45dBu to -35dBu
Max Level	-19dBu
Impedance	100K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion	0.04% @ 1KHz

+Audio - PA Out

Nominal Level	-22dBu
Max Level	-10dBu
Noise Floor	-69dBu
Dynamic Range	59dB
Frequency Response	+/-4dB from 20Hz to 15KHz
Total Harmonic Distortion	< 0.2% @ 1KHz

+Audio - Out

Nominal Level	-15dBu
Max Level	-3dBu
Noise Floor	-75dBu
Dynamic Range	72dB
Frequency Response	+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion	< 0.1 % @ 1KHz

+AC Power Supply (LA-211-0X)

AC Power Supply Input	120 - 240VAC, 50/60Hz, 2.5A
AC Power Supply Output	24VDC, 10A
Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Compliance	FCC, CE

+DC Power Cable (LNA-040-PC)

Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Cable Length	183cm (72 in.)

+Environmental

Temperature - Operating	0 C to +40 C (32 F to +104 F)
Temperature - Storage	-20 C to +50 C (-4 F to +122 F)
Relative Humidity	0 - 95%, Non condensing

+Compliance

Standards

FCC, IC, RoHS, TUV, CE

+Server

Programming	Via Cloud Software: Navilution Cortex software for route building and content management.
Max Channels	16
Audio Media File Format	mp3, 128kbps, mono
Audio Bit Depth	16 Bit
Audio Sampling Rate	44.1KHz
Video Media File Format	MP4
Max Trigger points	120 per route
Wi-Fi Control	2.4Ghz HTTP

Accessories

Navilution USB 16GB Flash Drive

SKU: LNA-052-USB

How-To's

FAQs

+Is it possible to expand a Navilution LE system to more than 16 channels?

There is a maximum of 16 audio channels available in a single Navilution Listen EVERYWHERE system, however duplicate systems can be deployed to add additional channels.

+Does a Navilution LE server come with a wireless access point?

No, that is purchased separately.

+How many phones can be connected to a Navilution Listen EVERYWHERE (LE) system?

1,000 phones can be connected to a Navilution Listen EVERYWHERE (LE) System

+What wireless access point should I use?

Refer to Listen support notes on wireless access points or contact your audio-visual integrator.

+How does a passenger use Listen EVERYWHERE?

Passengers use QR codes to download the app and get on the Wi-Fi network. The language is automatically selected based on the language of the phone and customers can also manually select channels, languages, and/or tour topics.

+Is the Navilution LE system secure?

Yes. The Wi-Fi network can be password protected.

+Why should I choose the Navilution System from Listen?

For over 23 years, Listen has been a quality developer and manufacturer of reliable and mission-critical audio-visual equipment to the world. Rest assured, you know that Listen is constantly improving and supporting its products. And our worldwide audio-visual partners will be there to support you in the design, installation, and maintenance of your system today and as you expand to meet future demands.

+How do I get support for my Navilution system?

Call your local reseller you purchased it from and/or call Listen directly. We provide support in most countries worldwide.

+What are the options for power on a Navilution Server?

The Navilution Server can be powered from a vehicle DC power source that is 12VDC to 24VDC or it can be powered from an 100-240 VAC, 50-60Hz AC power supply.

+I need a single language system going to the PA system in my vehicle or vessel – which system should I purchase?

Any Navilution system can be used for your PA system. However, if you ever wanted to add seatback controllers, you would want to use a Navilution EVO system or if you ever wanted to upgrade to a Listen EVERYWHERE system for Wi-Fi commentary delivery to smart devices, you would want to use a Navilution NEXT system.

+How many channels does Navilution EVERYWHERE System have?

The Navilution EVERYWHERE System has 16 channels that can be expanded by duplicating systems.

+I already have my audio stories recorded. Can they be used on Navilution?

Yes. Simply import them into Cortex, Listen’s proprietary on-line tour development software.

+What format should the audio files be in?

Audio files need to be in .mp3 128kbps Mono 44.1khz format. Whatever format your audio files are in they can easily be converted to meet those parameters using free software on the internet. These files will have to follow a specific file naming protocol so that Cortex can recognize different language files.

+How do you get route information, GPS coordinates and tour audio onto the Navilution server?

Using the proprietary on-line software called Cortex, you do the tour development which includes routing planning and adding GPS trigger points on Google maps, and then uploading your audio stories to your media library. Once completed, you export the audio tour to a USB thumb drive and then simply plug the USB drive into the Navilution Server USB port. Your tour automatically updates the Navilution server.

+Is it possible to have both seatback controllers and a Listen EVERYWHERE on the same Navilution server?

No, not at this point. Stay tuned!

+What are my options for purchasing, installing and supporting my Navilution system in my country?

Listen has many audio-visual integrators throughout the world that are experts in designing, programming, installing, and supporting your system. Contact our Sales team at sales@listentech.com to assist with finding an AV Integrator in your area.

+How do you control a Navilution System?

The most common way is to use the included Display Control Panel (DCP). You can also connect to the Navilution server using a smart phone or tablet.

+What does the Display Control Panel (DCP) do?

This is used by the operator to start and stop automated tours, manually start stories and other functions such as setting the default language for audio out to your PA’s systems speakers as well as notifying the operator which story is next in your playlist.

+How does the GPS work?

To ensure reliable operation of system, a Garmin GPS receiver and remote antenna comes standard with all Navilution systems. The antenna should be mounted outside of the vehicle or vessel to ensure it has a strong signal from GPS satellites.

+What happens if you go into a tunnel or a location where there is no GPS signal?

There are two ways of solving this: 1) Just before entering location of the GPS dead spot, you can GPS trigger an audio story to start with a predefined time delay and then trigger the audio story based on the time; or 2) audio stories can be manually started by the operator.

+Can I GPS trigger commentary when delayed by heavy traffic?

Yes, using Cortex you can set up audio stories for both low and high traffic scenarios, so your passengers remain entertained on routes where high traffic is a challenge.

+Can I GPS trigger audio stories if I go down a street in both directions?

Yes, your audio stories will trigger in both directions. You can assign a directional heading to a GPS trigger which means your audio story will only play based on the direction your vehicle or vessel is moving.

+Does GPS triggering work in highly remote areas?

Yes, we work with many operators around the globe, GPS triggering stories from remote mountain canyons, Norwegian Fjords to Middle Eastern deserts.

+Does the Navilution system support assistive listening?

Yes, and you can deliver GPS triggered ASL stories using video to external screens using HDMI out on the server. With Listen EVERYWHERE, users can stream audio to their hearing aids from their smart devices using Bluetooth.

+Can I play music between audio stories?

Yes, you can use music between audio stories, an option in the online tour development software.
