This product is discontinued and the information here is only for reference.

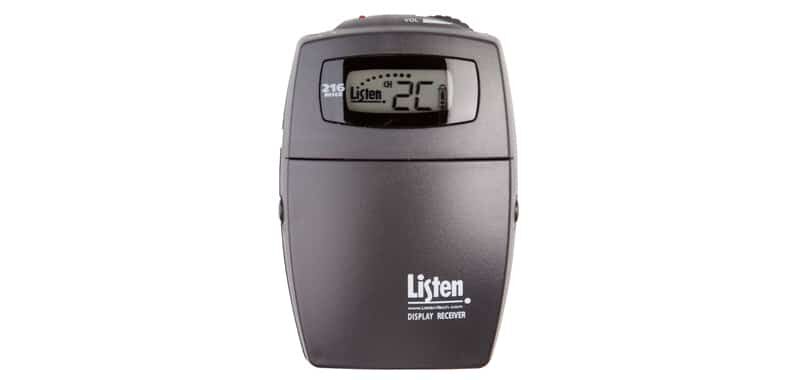

Portable Programable Display RF Receiver (216 MHz)

Portable Display RF Receiver (216 MHz) (Discontinued)

Item:LR-400-216
Discontinued

Offering the same high-performance audio and convenient recharging features as our other receivers, the LR-400-216 Portable Display RF Receiver is an affordable option for establishing or expanding your assistive listening system. Capable of receiving up to 19 wide-band or 38 narrow-band channels, the LR-400-216 features a digital LCD display, channel seeking capabilities, and compatibility with mono or stereo headphones. The LCD display provides each user with channel selection, battery level, and signal strength information, and an LED on the top of each receiver indicates power status and low battery conditions.

The LR-400-216 Portable Display RF Receiver is a cost-effective way to provide assistive listening to your customers, clients, or patrons.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

One (1) LR-400-216 Portable Display FM Receiver
One (1) Quick Reference Card

Highlights

  • Cost-effective solution to beginning or expanding your RF assistive listening system
  • Can receive up to 17 wide-band or 40 narrow-band channels
  • Easy-to-read LCD display with battery status, channel information, and signal strength readings
  • Channel seek capabilities
  • 80 dB signal-to-noise ratio for industry-leading sound quality
  • Built-in SmartCharge feature prevents overcharging
  • Simple drop-in charging compatible with Listen Technologies’ charging cases and plugs
  • Compatible with mono and stereo headphones

Specs

+Audio

Frequency Response50 - 15 kHz (±3 dB)
Signal-to-Noise RatioSQ enabled 70 dB, SQ disabled 50 dB
Audio Output Jacks3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
Distortion< 2% total harmonic distortion (THD) at 80% deviation

+Controls

User ControlsChannel up/down, SEEK, volume, Alkaline/NiMH batteries, SQ enable/disable
ProgrammingChannel lock, squelch

+Indicators

LCDChannel designation, battery level, battery charging, RF signal strength and channel lock
LEDsRed, illuminated when unit is on, flashes when batteries are low or to indicate charging, flashes when locked and SEEK is pushed

+RF

Frequency Range216.0125 - 216.9875 MHz
Number of Channels19 wide band, 38 narrow band
Sensitivity.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy± .005% stability 32 to 122 ºF (0 to 50 ºC)
SquelchProgrammable in 20 steps, automatic on loss of RF signal
Antenna TypeUses earphone cable

+Power

Power SupplyI/P 120 VAC; O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases, power supply not included (LA-208)
Power Supply Connector0.09 in. (2.3 mm) OD by 0.7 mm ID, barrel type connector 7.5 VDC, center positive < 250 mA, drop in contact points for use with Listen charging cases
Battery TypeTwo (2) AA batteries, alkaline or NiMH
Battery Life30 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362)
Battery Charging TimeFully automatic, 13 hours
ComplianceRoHS, WEEE, UL, PSE, CE, CUL, TUV, CB

+Physical

Width2.75 in. (7.0 cm)
Height4.25 in. (10.8 cm)
Height1.50 in. (3.8 cm)
ColorDark Grey with white silk screening
Unit Weight with Batteries5.8 oz (164 g)
Shipping Weight1.0 lbs. (0.5 kg)
Weight3.9 oz (111 g)
DoorManually lockable, SEEK/channel select behind the door

+Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage-4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

SafetyRoHS
RFFCC Part 15, Part 90, Industry Canada

How-To's

FAQs

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What is the difference between the LR-400 and the LR-500?

The LR-500 gives the user an opportunity to lockout unused channels and has the controls on the outside of the front door.

+Can the LR-400 be used with multiple transmitters?

Yes. The LR-400 can be used with multiple transmitters, but unlike the LR-500, it cannot be programmed to lock out channels.

+What is squelching?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function is preset and cannot be changed on the LR-300.

+How many receivers can I have in a system?

As many as you need, the number is endless.
