Sale!

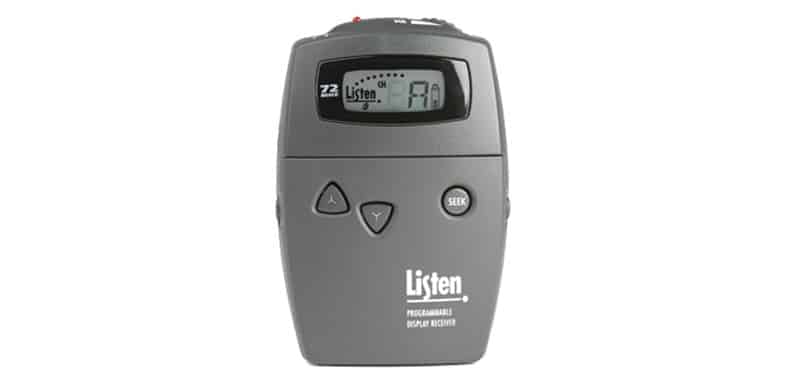

Portable Programable Display RF Receiver (72 MHz)

Portable Programmable Display RF Receiver (216 MHz)

Item:LR-500-216b Price: Original price was: $289.00.Current price is: $231.20.B-STOCK

Combining powerful, crystal-clear audio performance with the ability to program each unit, the LR-500-216 Portable Programmable Display Receiver is a top-of-the-line solution for your assistive listening system. Our signature Look & Listen (TM) LCD display gives you and your users a quick, easy way to check the programming status, channel selection, battery level, signal strength, and more. And Listen Technologies’ SmartCharge (TM) system built into each unit helps to prevent overcharging (when used with NiMH rechargeable AA batteries).

Easy to use and easy to program, the LR-500 offers you a high-performance 216 MHz receiver option for meeting the needs of your visitors or customers.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LR-500-216  Portable Programmable Display FM Receiver (216 MHz)
One (1) Owner’s Manual (216 MHz)

Highlights

  • Compact, portable, and programmable digital receiver
  • Can receive up to 19 wide-band or 38 narrow-band channels
  • Easy-to-read LCD display with programming status, battery level, channel lock, and signal strength readings
  • Channel seek capabilities and channel selector buttons on the front of the unit
  • 70 dB signal-to-noise ratio for industry-leading sound quality
  • Built-in SmartCharge feature prevents overcharging
  • Simple drop-in charging compatible with Listen Technologies’ charging cases and plugs
  • Compatible with mono and stereo headphones
  • Uses standard AA alkaline or NiMh rechargeable batteries
  • Limited lifetime warranty and hassle free support from Listen Technologies

Specs

+Audio

Frequency Response50 - 15 kHz (±3 dB)
Signal-to-Noise RatioSQ enabled: 70dB; SQ disabled 50dB
Audio Output Jacks3.5mm connectors, unbalanced, 0dBu nominal output level, 16mW maximum, impedance 32 Ohms
Distortion< 2% total harmonic distortion (THD) at 80% deviation

+Controls

User ControlsChannel up/down, SEEK, volume, Alkaline/NiMH batteries, SQ enable/disable
ProgrammingChannel lock, squelch, channel lock out

+Indicators

LCDChannel Designation, lock status, signal strength indication, programming
LEDsRed, illuminated when unit is on. Flashes when batteries are low, or to indicate charging. Flashes when locked and SEEK is pushed.

+RF

Frequency Range216.0125 - 216.9875 MHz
Number of Channels19 wide band, 38 narrow band
Sensitivity.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy± .005% stability 32 to 122º (0 to 50ºC)
SquelchProgrammable in 20 steps, automatic on loss of RF signal
Antenna TypeUses earphone cable

+Power

Power SupplyI/P 120VAC; O/P 7.5VDC 250 mA; Drop in contact points for use with charging cases. Power supply not included (LA-208)
Power Supply Connector2.3mm OD by 0.7mm ID, barrel type connector 7.5 VDC, center positive < 250mA. Drop in contact points for use with Listen charging cases
Battery TypeTwo AA batteries, alkaline or NiMH
Battery Life30 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362)
Battery Charging TimeFully automatic, 13 hours
ComplianceRoHS, WEEE, UL, PSE, CE, CUL, TUV, CB compliant

+Physical

Width5.00 in. (13.0 cm)
Height3.00 in. (7.6 cm)
Depth1.00 in. (2.5 cm)
ColorDark Grey with white silk screening
Unit Weight with Batteries5.8 oz (164 g)
Shipping Weight1.0 lbs. (0.5 kg)
Weight3.9 oz (111 g)
DoorManually Lockable. Up, down, and power buttons through door. Other controls behind door (see controls)

+Environmental

Temperature - Operation14 to 104º F (-10 to 40º C)
Temperature - Storage-4 to 122° F (-20 to 50° C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

RFFCC Part 90, Industry Canada

Accessories

4-Unit Portable RF Product Carrying Case (Limited Quantities)

4-Unit Portable RF Product Carrying Case (Limited Quantities)

SKU: LA-318
A picture of a Listen soft carrying case.

Soft Case (Limited Quantities)

SKU: LA-306
Charging Case 16 RF Products

16-Unit Portable RF Product Charging/Carrying Case (Limited Quantities)

SKU: LA-311
Open portable RF carrying case

16-Unit Portable RF Product Carrying Case (Limited Quantities)

SKU: LA-313
Open portable RF product charging case

4-Unit Portable RF Product Charging/Carrying Case (Limited Quantities)

SKU: LA-317
Protective pouch shown with an RF Receiver inside

Protective Pouch for Portable RF Products (Limited Quantities)

SKU: LA-319
Configurable Carrying Case

Configurable Carrying Case

SKU: LA-320
Open hard shell travel case with portable radio frequency receivers.

8-Unit Portable RF Product Carrying Case (Limited Quantities)

SKU: LA-322

How-To's

FAQs

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What is the difference between the LR-400 and the LR-500?

The LR-500 gives the user an opportunity to lockout unused channels and has the controls on the outside of the front door.

+Can the LR-500 be used with multiple transmitters?

Yes. We recommend the LR-500 for use with multiple transmitters. The LR-500 is programmable and can be set to just those channels you need.

+How many receivers can I have in a system?

As many as you need, the number is endless.

+How many channels can I program into the LR-500?

One to 57. The receiver has 57 channels and you can program it to have just the channels you want to access. It can be a two channel receiver, a 12 channel receiver, or keep all channels.

+How long do the batteries last on the LR-500 receiver?

Alkaline batteries last 30 hours. NiMH rechargeable batteries last 15 hours (72 MHz and 216 MHz). With 863 MHz, Alkaline batteries last 20 hours and NiMH rechargeable batteries last 10 hours.
