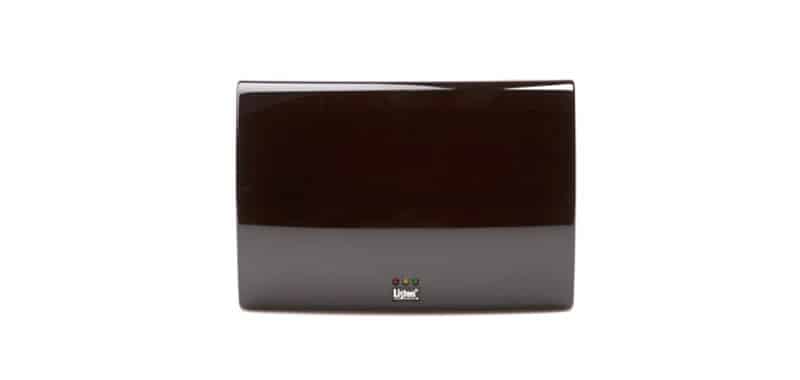

Front view of the LA140 stationary IR radiator
Back view of the LA 140 stationary infrared radiator with stand
Back view of the LA 140 stationary infrared radiator LA 140
Side view of the LA 140 stationary infrared radiator
Product image of an infrared stationary radiator
Stationary IR radiator mounted on the wall

Stationary IR Radiator

Item:LA-140-GYb Price: Original price was: $1,163.00.Current price is: $930.40.B-STOCK

Combining a compact, stylish design with outstanding coverage and simple setup, the LA-140 IR Radiator/Emitter from Listen Technologies is an expandable option for any infrared assistive listening application.

Two LA-140 units can be mounted together horizontally or vertically, doubling the power of your system without taking up an excessive amount of space. Additionally, two units can be powered by a single LT-82 transmitter or optional power supply with standard CAT-5 cable, making setup and installation simple.

Each unit includes hardware for mounting on wall, ceiling, desk, mic stand or tripod, making the LA-140 an incredibly versatile choice for nearly any IR assistive listening system.

With a compact design and availability in either white or grey, the LA-140 IR Radiator/Emitter from Listen Technologies is a discreet and dependable choice.

Download Product Data Sheet
See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LA-140 Stationary IR Radiator
One (1) Mounting hardware (allows for wall, ceiling, desk, mic stand and tripod mounting)
Twenty-five (25) ft. (7.6 m) of coax cable, matched color
Twenty-five (25) ft. (7.6 m) of CAT-5 cable, matched color
One (1) Quick Reference Card

Up to two LA-140 radiators can be powered by one LT-82. If additional power is required, order an additional power supply.

Highlights

  • Up to 929 m2 (10,000 ft2) of reliable IR signal coverage
  • Two (2) radiators can be combined and powered by a single LT-82 transmitter or optional power supply via standard CAT-5 cabling
  • Can be mounted together horizontally or vertically for double the power in a compact space
  • Automatic radiator diode shutoff feature extends radiator life
  • Delay compensation to eliminate dropout in the infrared signal
  • Available in either white or grey for discrete installation in a variety of settings

Also Needed

Frontal view of a radio frequency transmitter with the display lights on

ListenIR 1-Channel Transmitter

SKU: LT-82
RG-58 50 Ohm Coaxial Cable measured and cut by the foot

RG-58 50 Ohm Coaxial Cable (500 ft)

SKU: LA-112-500
Photo of coaxial cable rolled up around a wooden case

RG-8 50 Ohm Low-Loss Coaxial Cable (500 ft)

SKU: LA-113-500
A picture of the Stationary IR Dual Radiator Mounting Bracket.

Stationary IR Dual Radiator Mounting Bracket

SKU: LA-342
Frontal view of a radio frequency transmitter with the display lights on

ListenIR 1-Channel Transmitter

SKU: LT-82
Rolled up coaxial cable

RG-58 50 Ohm Preassembled Coaxial Cable

SKU: LA-391
RG-8 50 Ohm Preassembled Coaxial Cable wrapped up

RG-8 50 Ohm Preassembled Coaxial Cable

SKU: LA-390
Power cord and supply box for a charging tray with two separate cords

Replacement/Extension Power Supply for LA-140/LT-82

SKU: LA-205
ListenIR 4200 Receiver with Courtroom on screen

Intelligent DSP IR Receiver

SKU: LR-4200-IR
Listen IR Receiver with Courtroom mode activated

Advanced Intelligent DSP IR Receiver

SKU: LR-5200-IR
A picture of Intelligent DSP IR Receiver Package 1.

Intelligent DSP IR Receiver Package 1

SKU: LR-4200-IR-P1
A picture of an Advanced Intelligent DSP IR Receiver

Advanced Intelligent DSP IR Receiver Package 1

SKU: LR-5200-IR-P1
IR Intelligent Receiver 6-Pack

Intelligent DSP IR Receiver 6-Pack

SKU: LP-40-IR-01
IR Intelligent Receiver 12-Pack

Intelligent DSP IR Receiver 12-Pack

SKU: LP-41-IR
IR Advanced Intelligent DSP Receiver 6-Pack

Advanced Intelligent DSP IR Receiver 6-Pack

SKU: LP-50-IR
IR Advanced Intelligent DSP Receiver 12-Pack

Advanced Intelligent DSP IR Receiver 12-Pack

SKU: LP-51-IR
Wall box mounting plate

Wall Box Mounting Plate

SKU: LA-347-GY

Specs

+Controls

User ControlsTermination Switch, Delay Compensation Switch, Indicator LEDs on/off, Compatibility Switch

+Indicators

Red LEDIndicates power is present.
Yellow LEDIndicates no connection to transmitter or radiator.
Green LEDIndicates carrier and power are present and radiator is emitting IR signal.

+RF

Frequency Range1 MHz - 5 MHz
Input/sBNC Connection. -25 dBm to -5 dBm input nominal
Output/sBNC Connection. -15 dBu nominal
Coverage Area10,000 ft² (929 m²) when used with Listen Receivers

+Power

Power Supply InputRJ-45 connector. 30 VDC, powered from transmitter via CAT-5 cable or optional LA-205 power supply.
Power Supply OutputRJ-45 connector. 30 VDC, powers up to one additional radiator. (Maximum two radiators powered from each LT-82 transmitter or LA-205 power supply)
Emitter Power3 W
Cable Length250 ft. with (1) LT-82 and (2) LA-140 or 700 ft. with (1) LT-82 and (1) LA-140.

+Physical

Width8.00 in. (203 mm)
Height5.50 in. (140 mm)
Depth2.60 in. (66 mm)
ColorLA-140-GY (Grey), LA-140-WH (White)
Shipping Weight6.0 lbs. (2.70 kg)
MountingRadiator can be mounted on a wall, on a ceiling, in a corner, on a desk, on a mic stand or on a tripod. Wall box mounting plate fits a standard single gang electrical box.
Weight2.1 lbs. (0.95 kg)
Weight (Loaded)2.4 lbs. (1.09 kg)

+Environmental

Temperature - Operation-14 °F (-10 °C) to +104 °F (40 °C)
Temperature - Storage-4 °F (-20 °C) to +122 °F (50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC Part 15, Industry Canada, CE, RoHS

FAQs

+How much coverage is provided with the LA-140?

Approximately 10,000 ft² (929 m²).

+Does the number of audio sources (carriers) affect the coverage?

Yes, for two (2) sources (carriers), the total coverage is half of 10,000 ft² (929 m²). For four (4) sources (carriers), the coverage per carrier is one-fourth.

+How many radiators can you use on a system?

Up to 100.

+How many radiators will I need?

Refer to the technical resource section of the Listen website for assistance in making this calculation.

+Does the LA-140 come with a power supply?

No, you must use either the power supply included with the LT-82 transmitter or purchase the optional LA-205 power supply.

+How do I connect multiple radiators?

You can daisy-chain the radiators together using coax cables. Power for up to two radiators can be daisy-chained using a short length of CAT-5 cabling or you can power two radiators off one transmitter.

+Can I disable the LEDs on the radiator?

Yes, the LEDs can be turned off at a switch on the back of the radiator.

+How many emitting diodes does the LA-140 have?

The LA-140 radiator has 84 diodes. It has 7 columns of diodes with 12 diodes each. If one diode goes out, you will lose only the diodes on that column.

+What is the warranty of the LA-140?

The LA-140 has a 3-year warranty.

+How is power delivered to the radiator?

Power is delivered with CAT-5 cables (connected between the radiator and either the LT-82 transmitter or the LA-205 power supply).

+How many radiators can be powered from the LT-82 or LA-205 power supply?

Two.

+What is the purpose of the delay compensation switch?

This switch allows you to set up delay timing in a multi-radiator system so that each radiator receives the carrier at exactly the same time. This prevents signal dropouts that can be caused by out-of-phase signals (multi-path). With Listen’s delay compensation switch, it is not necessary to cut all of your coaxial cables to the same length - your shorter runs can use shorter cables, keeping your installation clean (and cost-effective).
