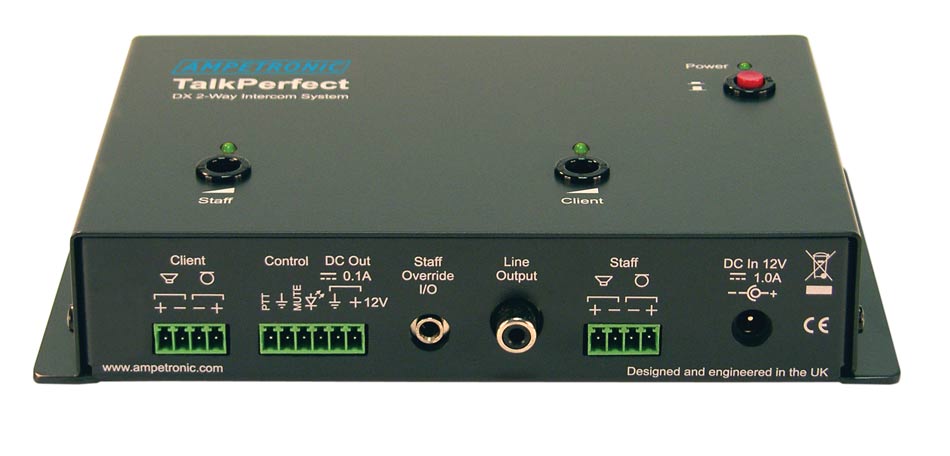

TalkPerfect Speech Transfer Kit - Image 2

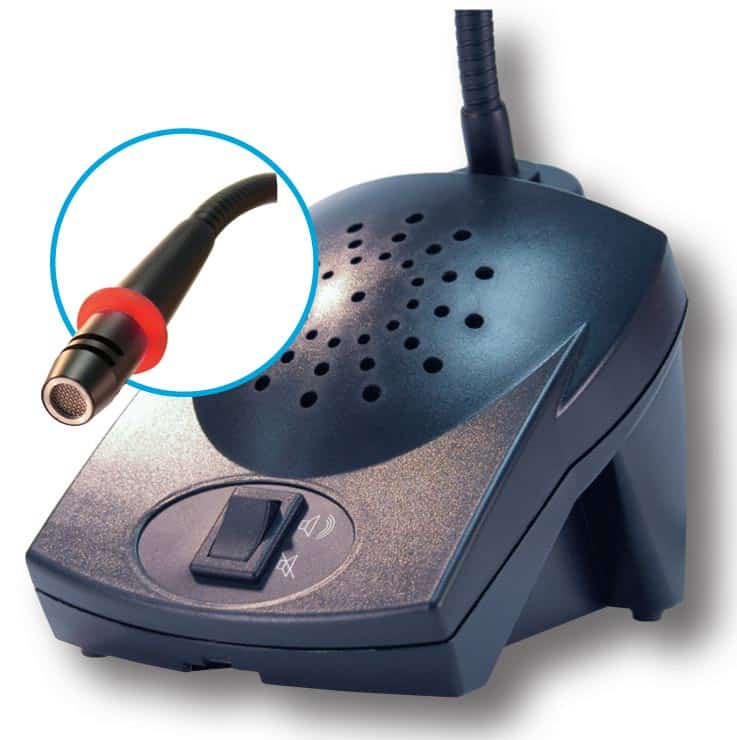

TalkPerfect Speech Transfer Kit - Image 3

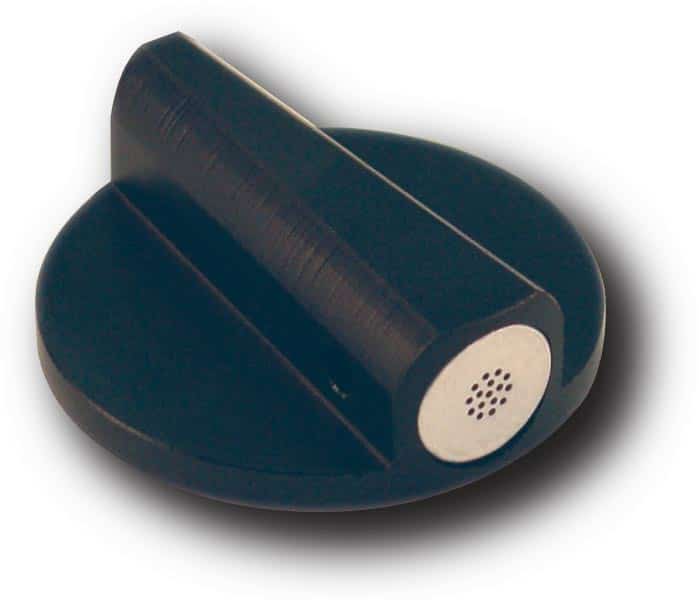

TalkPerfect Speech Transfer Kit - Image 4
TalkPerfect Speech Transfer Kit - Image 5

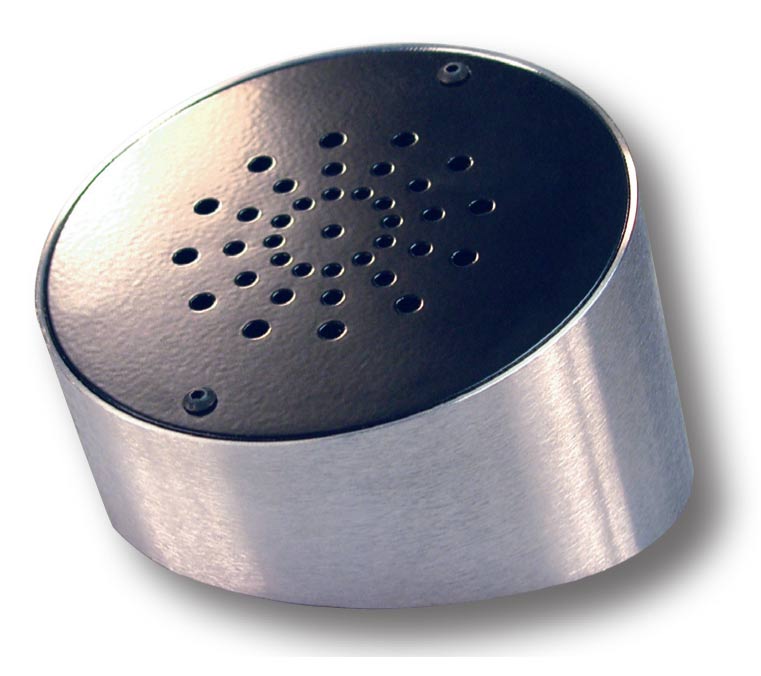

TalkPerfect Speech Transfer Kit - Image 6

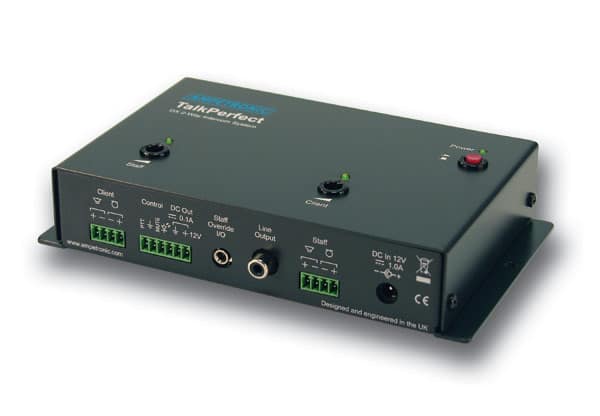

TalkPerfect Speech Transfer Kit

Item:TP-KIT

The TalkPerfect can be supplied in kits to suit any environment and application:



Kit code Description Notes

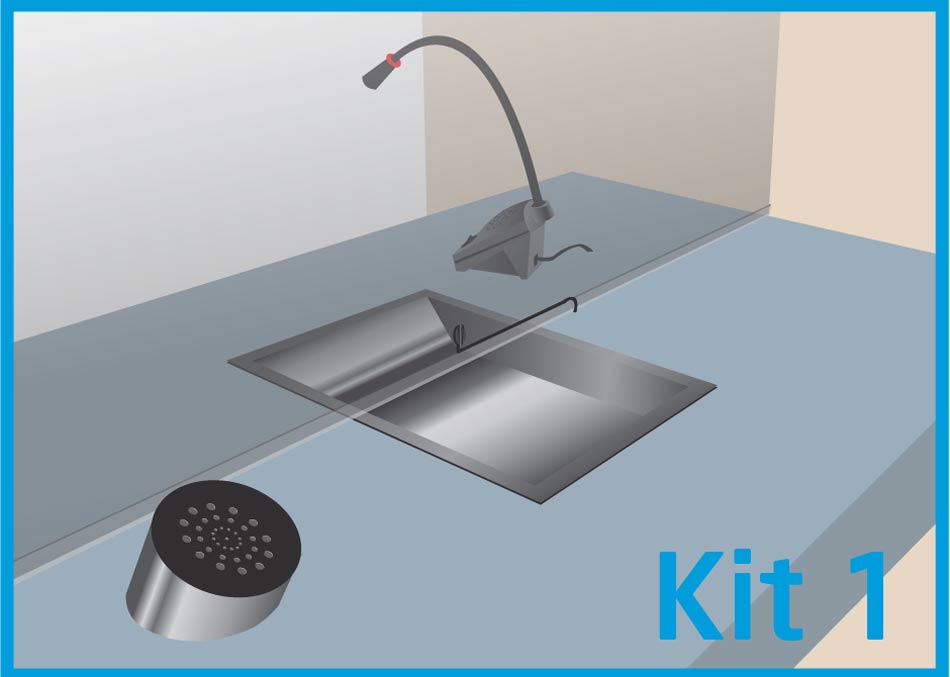

TP-KIT1 Talkperfect Kit1 1 Glass Mount Mic, 1 combi  + 1 Pod speaker Normally provides best volume and sound quality
TP-KIT3 Talkperfect Kit3  1 Pod Mic, 1 Pod speaker + 1 combi For robust, vandal proof installations
TP-KIT4 Talkperfect Kit4  2 Pod Mics + 2 Pod speakers Where public access is required on both sides of the window
Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

  • Full duplex (two-way, dual-way) communication
  • Feedback and echo suppression built in
  • Multiple microphone and speaker options
  • Simple integration to CLD1 loop amplifier
  • Compact design
  • All connections are on one panel for ease of installation
  • Fully adjustable gain on both channels
  • Low cost of ownership
  • 5 year warranty (NOTE accessories only carry a 1 year warranty)

Highlights

Enable your workforce to work safely and communicate effectively using window intercoms.


All employers have a duty of care to identify and manage risks to ensure that the workplace is safe particularly during times of high risk. The best intercom window systems ensure seamless communication and at the same time maintain social distancing and general safe working practices. Where guidelines cannot be followed in-full businesses need to take all actions possible to reduce the risk between their staff and their clients.

TalkPerfect duplex window intercom system

  • Full duplex (two-way, dual-way) communication
  • Multiple microphone and speaker options
  • Simple hearing loop integration
  • Compact, robust design
  • Low cost of ownership
  • 5 year warranty
    (accessories carry a 1 year warranty)

Also Needed

Specs

+Audio

Speaker OutputTwo (2) Speaker Outputs< 0.5% THD @ 1kHz with +11dBu (1W into 8?)Bandwidth: 20Hz - 10kHz.Min load: 4?, Max output level:+14dBu
Microphone InputTwo (2) Microphone InputsSuitable for unbalanced electret capsulesDC bias voltage: 6V through 1k?Suitable source: 1k?Input impedance: 8k?Input noise level: -124dBu
Line OutputUnbalanced phono socket for connection to CLD1 line input - cable supplied

+Controls

Control PortLED output connects to combi mic speaker toindicate if system is active i.e. Mute turns LED off.PTT & Mute are active low.+12Vdc for external module supply. 100mA fused

+Interconnections

Staff OverrideUnbalanced Line I/O using 3.5mm jack socket.Input = Tip, Output = RingInput sensitivity -10dBu with 1k? sourceOutput level max: +4dBu, typical -10dBuOutput Z: 220?

+Power

Nominal Voltage12VDC, Quiescent: 170mA 2W, Maximum: 1.0A 12W

+Physical

Shipping Weight9.0 lbs. (4.09 kg)
Dimensions (H x W x D)1.75 in. (44 mm) x 7.90 in. (200 mm) x 4.33 in. (110 mm)
Operating Temperature-10 to +45ºC, 20 to 90% humidity

+Compliance

StandardsFCC part 15, ICES-3 (B), UL, CUL, CE marked to all relevant safety and EMC standards.
