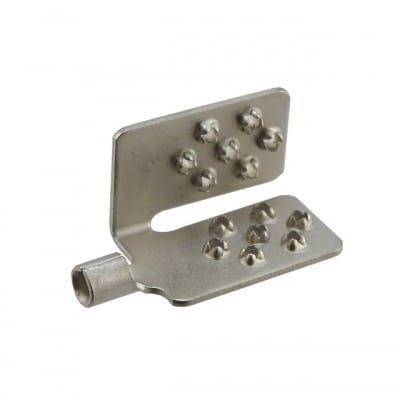

Terminal Foil Connector Barrel 14-16 AWG Nickel (12 CT)

Item:LA-398 Price:$39.00MSRP

The Terminal Foil Connector Barrel 14-16 AWG Nickel makes it possible to use copper foil or strip instead of copper wire. These terminations feature a calculated number of precision spaced lances which penetrate surface oxides and insulation, then embed themselves in the foil or strip when the two faces are clamped together. This results in an airtight and moisture-proof connection, with no need for surface preparation or time-consuming termination equipment.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

One (1) LA-398 Terminal Foil Connector Barrel 14-16 AWG Nickel (12 CT)

Highlights

  • Double face terminal type
  • Tin contact finish
  • Exceeds current-carrying requirements
  • No surface preparation necessary
  • No noise injection in low level audio circuits
  • Will terminate or tap aluminum foil-wound coils
  • Will splice two or more pieces of foil or strip
  • Apply to bare, insulated, anodized or coated aluminum and bare or insulated copper

Also Needed

Specs

+Physical

Terminal TypeBarrel
Foil Crimp Area0.454" x 0.708" (11.53mm x 17.98mm)
Length - Overall0.989" (25.12mm)
Wire Gauge14-16 AWG
Contact FinishNickel
Contact MaterialCopper

+Environmental

Moisture Sensitivity Level (MSL)1 (Unlimited)

+Compliance

Lead Free Status / RoHS StatusLead Free / RoHS Compliant
